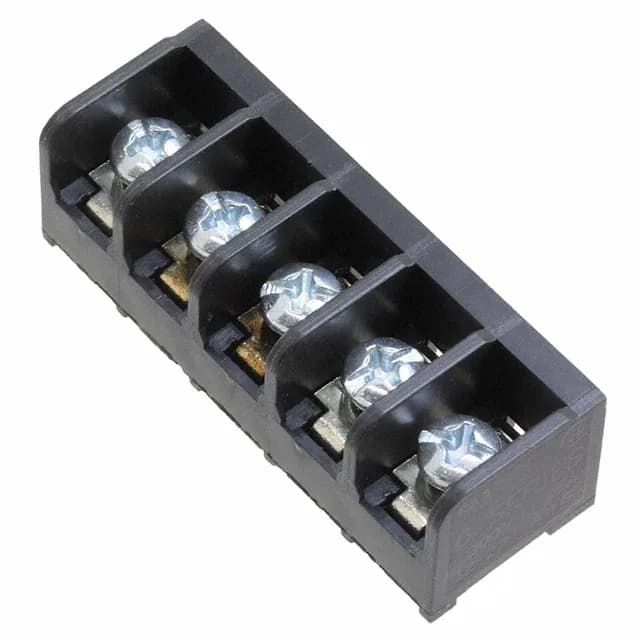

Barrier Block for Power Distribution — 5 Circuits at 25A
It carries a 25A current rating per circuit at 300V, which puts it squarely in power distribution duty — motor control panels, power supplies, and industrial I/O blocks where each terminal feeds a load, not a signal line.
Wiring and Termination — Screw Clamp on Top, PC Pin Below
Wire range is 12-22 AWG, so it handles motor leads on the heavy end and control wiring on the light end. The 3-wall (tri) barrier between terminals prevents an accidental short between adjacent circuits when the screwdriver slips or a stripped wire strands out.
Operating temperature tops out at 105°C, so it lives comfortably inside a warm industrial cabinet. ROHS3 compliant per the current revision.
