16-Circuit Barrier Block for Panel Wiring

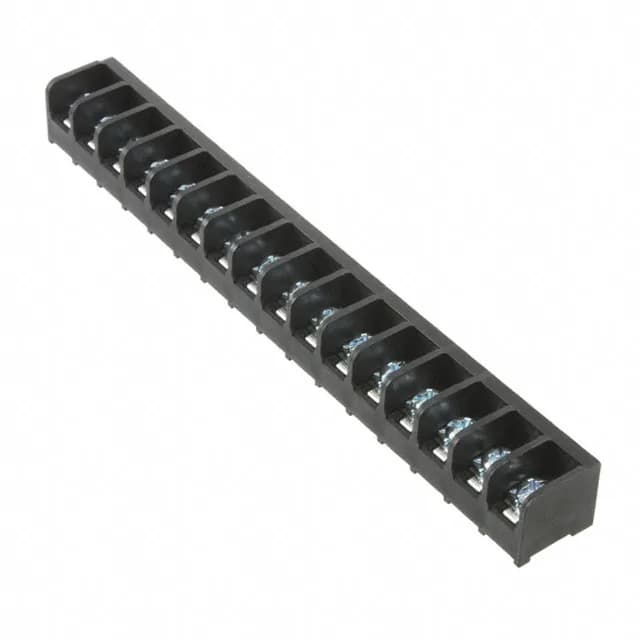

The 6PCV-16-006: This is a 1-row, 16-wire-entry block using a 3-wall (tri) barrier design that isolates each termination point, reducing the chance of accidental shorting between adjacent circuits during wiring or service. Rated 25A per circuit at 300V, this block handles power distribution in control panels, power supplies, and industrial equipment where a screw-terminated, field-serviceable connection is preferred over a crimped or soldered joint. The wire range is 12-22 AWG, covering solid and stranded conductors typical of panel wiring.
The 0.375" (9.53mm) pitch is the centre-to-centre spacing of the screw terminals. This is a standard barrier-block pitch that gives enough room for a screwdriver tip and a ring-tongue or spade terminal without crowding adjacent circuits. The 16-circuit count at this pitch means the overall block length is about 6.0" (152mm) — confirm the PCB real estate before committing the BOM line.
