TE Connectivity AMP Connectors 6WWV-03-008 — Barrier Terminal Blocks

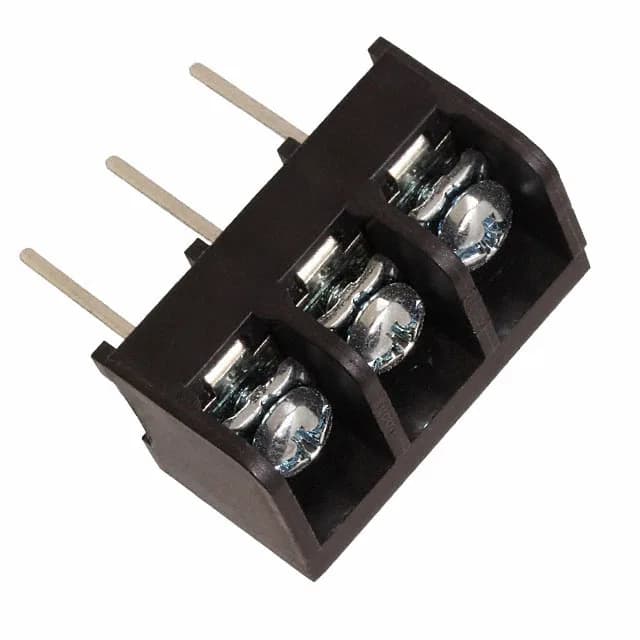

TE 6WWV-03-008 Barrier Block, 3 Circuits, 0.375" Pitch, 25 A

MPN6WWV-03-008
Active

TE Connectivity #6, Buchanan 6WWV-03-008, 3-circuit barrier strip, 0.375" (9.53 mm) pitch, 25 A, 300 V, 12-22 AWG, through hole, screws with captive plate top, wire wrap bottom, UL94 V-0.

$1.5100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series#6, Buchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

6WWV-03-008 key specifications
ParameterValue
Series#6, Buchanan
Barrier type3 Wall (Tri)
MountingThrough Hole
Terminal block typeBarrier Block
Voltage rating300V
Current rating25A
Wire gauge12-22 AWG
Terminal screw finishZinc, Clear Chromate
Number of wire entries3
Terminal screw materialSteel
Operating temperature105°C
ColorBlack

All specifications

6WWV-03-008 additional specifications
ParameterValue
Material - insulationThermoplastic
Material flammability ratingUL94 V-0
Pitch0.375\" (9.53mm)
PackageBulk
Rows1
Top terminationScrews with Captive Plate
Bottom terminationWire Wrap
Number of circuits3

Product details

The TE Connectivity 6WWV-03-008 is a 3-circuit barrier strip from the #6, Buchanan series, designed for panel wiring and point-to-point power distribution where a screw-clamp termination is preferred. The block accepts 12-22 AWG wire, so it covers both heavier power feeds and smaller control wiring in the same assembly.

This is a field-service detail: the captive plate saves the time of fishing a loose washer out of a live panel. Bottom termination is wire wrap, meaning the solderless wrap post is intended for a wire-wrap gun, not a soldering iron. The 3-wall (tri) barrier design isolates each terminal position, reducing the chance of a stray strand bridging adjacent circuits during wiring.

The 105°C operating temperature of the thermoplastic insulation gives headroom in a warm cabinet, but the current should be derated above 105°C per the manufacturer's curve.

Frequently asked questions

What wire gauge does 6WWV-03-008 accept?

The 6WWV-03-008 accepts 12-22 AWG wire, covering both heavier power conductors and smaller signal wires in the same terminal block.

What is the pitch of 6WWV-03-008?

The pitch is 0.375" (9.53 mm), which determines the center-to-center spacing between adjacent circuits on the board or panel.
