Barrier Strip for Power Distribution

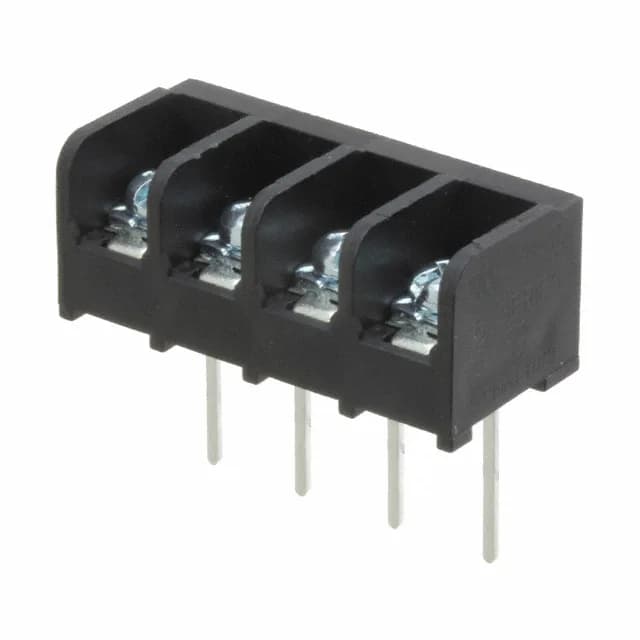

The TE Connectivity Buchanan 6WWV-04-008 is a 4-circuit barrier strip from the #6 series, designed for point-to-point wiring in control panels, power supplies, and industrial equipment. It carries a 25A current rating at 300V, with a 0.375" (9.53mm) pitch that provides adequate creepage for the voltage class. The 3-wall (tri) barrier design prevents accidental shorting between adjacent terminals — a practical safeguard when routing multiple circuits in a confined enclosure.
Accepts 12-22 AWG wire, terminated via screws with captive plate — the plate captures the conductor without needing a separate ferrule or ring terminal, which speeds field wiring. The bottom termination is wire wrap, suited for soldered or wrapped connections on the PCB side. Terminal screws are steel with zinc clear chromate finish, offering corrosion resistance in humid cabinet environments.
