6-Circuit Barrier Block, 25A at 300V — 0.375" Pitch

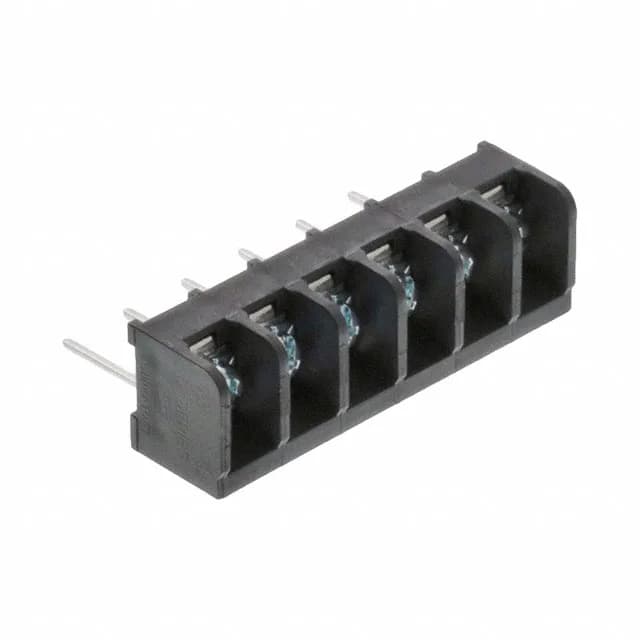

The TE Connectivity 6WWV-06-008 is a 6-circuit barrier strip from the #6 Buchanan series, designed for through-hole mounting with wire-wrap bottom termination. Accepts 12-22 AWG wire, which covers the common range for panel power distribution and motor control circuits.
Barrier and Flammability — 3-Wall Design, UL94 V-0
The housing uses a 3-wall (tri) barrier design, which means each terminal position is isolated on three sides by the thermoplastic wall — this prevents a wire strand from bridging adjacent terminals during termination. Operating temperature range is rated to 105°C, which covers the typical ambient inside a control panel without derating the 25A current.
Termination and Hardware — Screws with Captive Plate, Wire Wrap Bottom
The bottom termination is wire wrap, meaning the solderless connection is made by wrapping stripped wire around the post, which is common in legacy telecom and control panel backplanes.
