TE Connectivity AMP Connectors 7-1393644-4 — Backplane Connectors

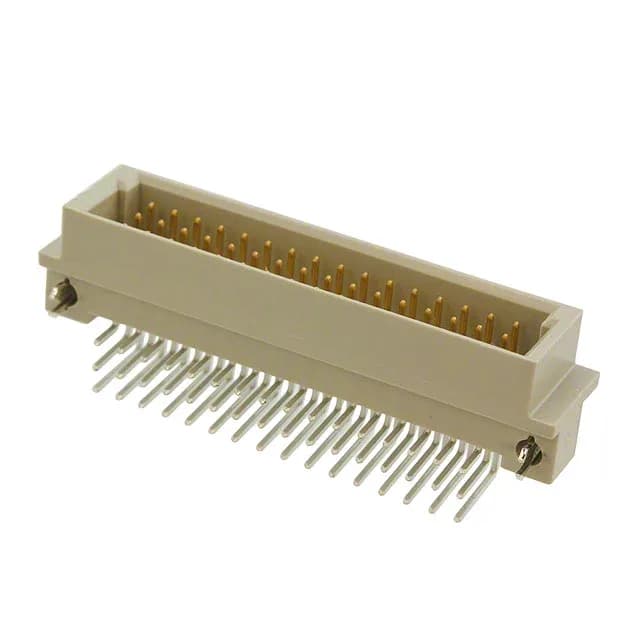

TE Connectivity 7-1393644-4 Eurocard Plug, 48 Pos

MPN7-1393644-4
Active

TE Connectivity Eurocard DIN 41612 plug, 48 positions, 3 rows, 0.100" (2.54 mm) pitch, C/2 (1/2 C) style, right-angle through-hole, solder termination, gold or gold-palladium contacts, board lock, UL94 V-0.

$5.1700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEurocard
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

7-1393644-4 specifications
ParameterValue
SeriesEurocard
MountingThrough Hole, Right Angle
Connector typePlug, Male Pins
Operating temperature-55°C ~ 125°C
Material - insulationPolybutylene Terephthalate (PBT), Polyester, Glass Filled
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
StyleC/2 (1/2 C)
PackageBulk
FeaturesBoard Lock
TerminationSolder
Level, class2
Contact finishGold or Gold-Palladium
Rows3
Positions48

Product details

Eurocard DIN 41612 Plug for Backplane Interconnects

The TE Connectivity 7-1393644-4 is a 48-position Eurocard plug from the DIN 41612 family, built for board-to-backplane signal and low-power distribution in card-cage systems. It carries the C/2 (1/2 C) style — three rows with the centre row fully populated — matching the standard Type C DIN 41612 footprint.

48 Positions, All Loaded — What the C/2 Style Means for Your Pinout

The C/2 style (also written 1/2 C) means the connector uses three rows of 48 positions loaded.

Frequently asked questions

What is the pinout of 7-1393644-4?

Design engineers need to verify signal mapping for PCB layout and compatibility with mating connectors.

Is 7-1393644-4 obsolete or end-of-life?

Brokers and buyers need lifecycle information to avoid supply disruptions and plan for replacements.

What is the price and lead time for 7-1393644-4?

Sourcing buyers must compare cost and availability across distributors to fill BOM within budget and schedule.

What is the direct replacement or equivalent for 7-1393644-4?

Maintenance techs and procurement need alternative parts when the original is unavailable or to ensure second sourcing.

Is 7-1393644-4 compliant with RoHS and REACH?

Compliance is mandatory for many industries; failure to confirm can lead to legal and manufacturing issues.

Where can I purchase 7-1393644-4 in bulk?

Transactional buyers need trusted distributor channels for volume orders with competitive pricing.
