TE Connectivity AMP Connectors 7-1437651-0 — Barrier Terminal Blocks

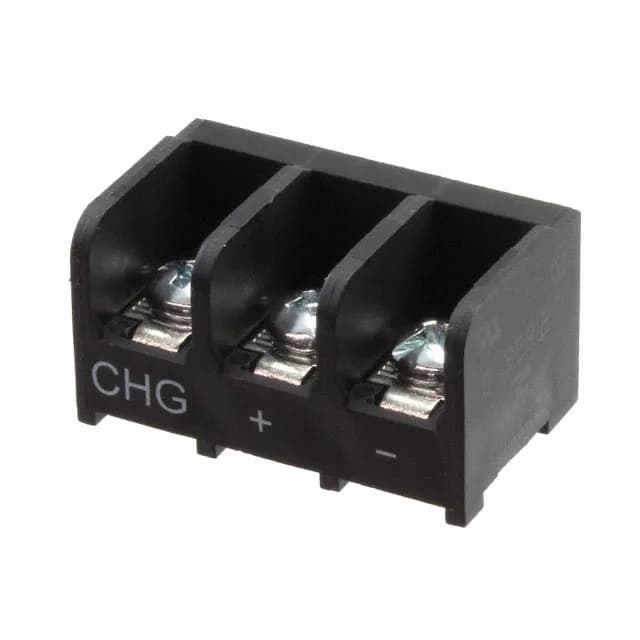

TE Buchanan 7-1437651-0 Barrier Block, 3 Circuit, 25A

MPN7-1437651-0
Active

TE Connectivity Buchanan #6 series, 7-1437651-0, barrier strip, 3 circuits, 0.375" (9.53mm) pitch, 25A, 300V, through-hole, PC pin, screws, black, UL94 V-0.

$1.5600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series#6, Buchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

7-1437651-0 key specifications
ParameterValue
Series#6, Buchanan
Barrier type3 Wall (Tri)
MountingThrough Hole
Terminal block typeBarrier Block
Voltage rating300V
Current rating25A
Wire gauge12-22 AWG
Terminal screw finishZinc, Clear Chromate
Number of wire entries3
Terminal screw materialSteel
Operating temperature105°C
ColorBlack

All specifications

7-1437651-0 additional specifications
ParameterValue
Material - insulationThermoplastic
Material flammability ratingUL94 V-0
Pitch0.375\" (9.53mm)
PackageBulk
FeaturesPositions Stamped
Rows1
Top terminationScrews
Bottom terminationPC Pin
Number of circuits3

Product details

The TE Connectivity Buchanan 7-1437651-0 is a 3-circuit barrier strip from the #6 series, built for panel wiring where a screw-terminated, through-hole connection is needed. The 3-wall (tri) barrier isolates each wire entry, so a stripped conductor can't short to the adjacent circuit during installation or field service. Wire range is 12-22 AWG, which covers a main power feed on 12 AWG down to a control loop on 22 AWG in the same block.

Top termination is screws (steel, zinc clear chromate finish); bottom termination is PC pin for through-hole soldering to the board. Single row, 3 wire entries — one per circuit.

Frequently asked questions

What is the pitch of 7-1437651-0?

The pitch is 0.375" (9.53 mm), which is the centre-to-centre spacing between adjacent circuits.

What wire gauge does 7-1437651-0 accept?

It accepts 12-22 AWG wire, covering power feeds down to control wiring, all terminated under the same screw.
