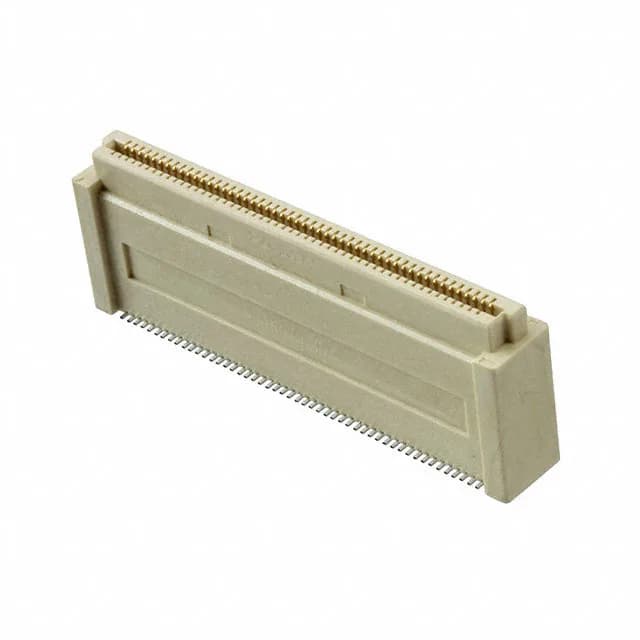

TE Connectivity Free Height (FH) receptacle, outer shroud contacts, 100 positions, 0.80mm pitch, dual-row, surface mount, gold 30.0µin, 17mm mated stack height.
| Parameter | Value |
|---|---|
| Series | Free Height (FH) |
| Mounting | Surface Mount |
| Connector type | Receptacle, Outer Shroud Contacts |
| Height above board | 0.620\" (15.75mm) |
| Mated stacking heights | 17mm |
| Pitch | 0.031\" (0.80mm) |
| Package | Tube |
| Features | Board Guide |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 100 |
| Contact finish thickness | 30.0µin (0.76µm) |
The outer shroud contacts guide the mating plug, and the integrated board guide aligns the connector during assembly to protect the fine-pitch SMT tails.
The 17 mm mated stack height sets the mezzanine card spacing. The receptacle sits 15.75 mm above the board surface.
The mated stacking height is 17 mm, with the receptacle sitting 15.75 mm above the board surface.
Yes, it is ROHS3 Compliant.
