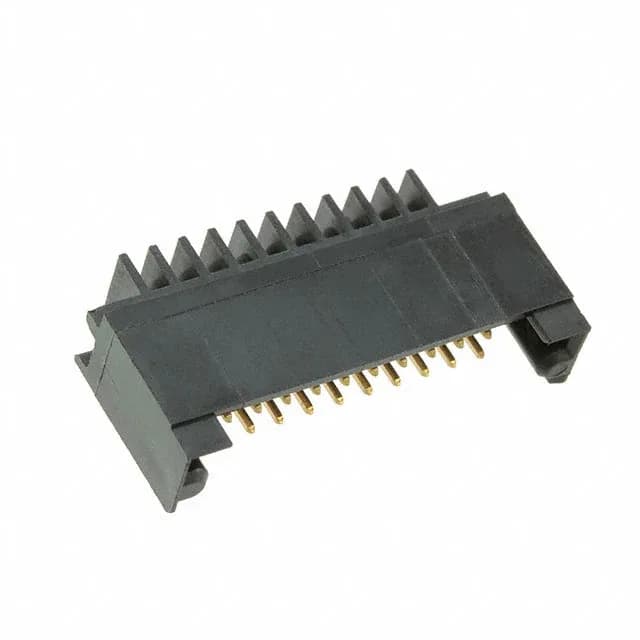

TE Connectivity 7-5177986-3 Free Height Plug, 80 Pos

MPN 7-5177986-3
Active

TE Connectivity Free Height (FH) series, Plug, Center Strip Contacts, 80 positions, 2 rows, 0.031" (0.80mm) pitch, Surface Mount, Gold 30.0µin (0.76µm) contact finish.

$10.0700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesFree Height (FH)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

7-5177986-3 specifications
ParameterValue
SeriesFree Height (FH)
MountingSurface Mount
Connector typePlug, Center Strip Contacts
Height above board0.270\" (6.85mm)
Mated stacking heights7mm, 11mm, 15mm, 19mm
Pitch0.031\" (0.80mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
Contact finishGold
Rows2
Positions80
Contact finish thickness30.0µin (0.76µm)

Product details

Board-stacking selection — 0.80 mm pitch, 80 positions, four stack heights

The TE Connectivity 7-5177986-3 is an 80-position plug from the Free Height (FH) series, built for parallel board-to-board mezzanine interconnects. The integral board guide aligns the plug during placement, protecting the fine-pitch contacts from shear damage during hand-load or reflow.

Stack height flexibility — one plug, four board gaps

A single 7-5177986-3 plug supports mated stacking heights of 7 mm, 11 mm, 15 mm, and 19 mm when paired with the matching Free Height receptacle. That range covers common mezzanine gaps from low-profile processor modules to taller add-in cards, letting one BOM line serve multiple board-spacing variants. The 0.270" (6.85mm) height above board is the plug's own profile before mating — the final stack height depends on the receptacle half.

No last-time-buy window or obsolescence notice. No direct functional equivalent from other manufacturers is documented in the series data.

How it compares — 7-5177986-3 vs 1-120532-2

The 0.80 mm pitch of the 7-5177986-3 allows tighter board routing density, while the 1-120532-2's heavier gold supports a higher mating-cycle duty. The two are not footprint-compatible — the pitch difference alone prevents a direct swap on the same board layout.
