TE Connectivity AMP Connectors 7-745129-9

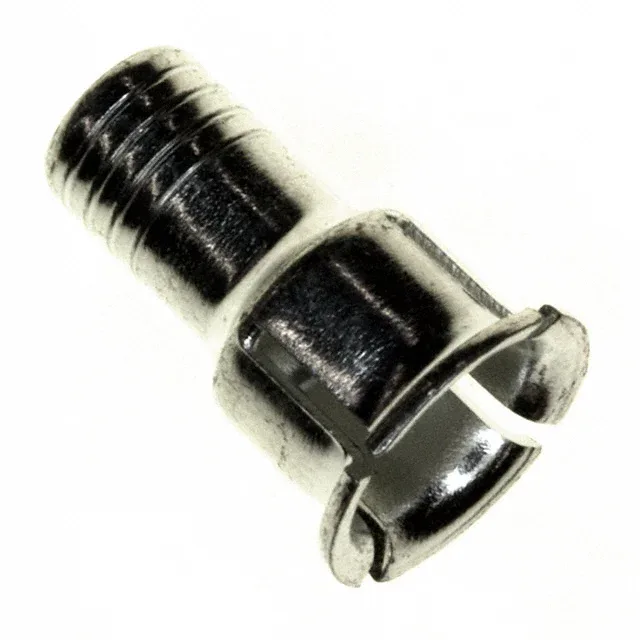

TE 7-745129-9 AMPLIMITE HDP-20 Ferrule, DB9/15/50

MPN 7-745129-9
Active

TE Connectivity AMPLIMITE HDP-20 series, 7-745129-9, Inner Ferrule, for DB9/DB15/DB50 connectors, Bag.

$7.0800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesAMPLIMITE HDP-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

7-745129-9 specifications
ParameterValue
SeriesAMPLIMITE HDP-20
Accessory typeFerrule, Inner
PackageBag
Positions9, 15, 50
For use with (Related products)AMPLIMITE Series

Product details

This crimp ferrule fits behind the backshell and over the cable jacket, providing strain relief and a clean termination point for the cable shield or drain wire. It is compatible with DB9, DB15, and DB50 shell sizes, making it a single stock-keeping unit that covers three common D-sub position counts.

Crimp ferrule for DB9, DB15, and DB50 shells

The ferrule accepts the same crimp tooling as the standard AMPLIMITE HDP-20 contact terminals. It is installed after the contacts are terminated, then the backshell slides over it and is tightened down. The inner diameter accommodates the cable bundle for the respective shell size — the DB50 variant handles a thicker cable bundle than the DB9 version, but the part number is the same for all three. RoHS compliant per the current TE declaration, so it clears the compliance gate for EU-market assemblies without a waiver review.

MPN
7-745129-9
