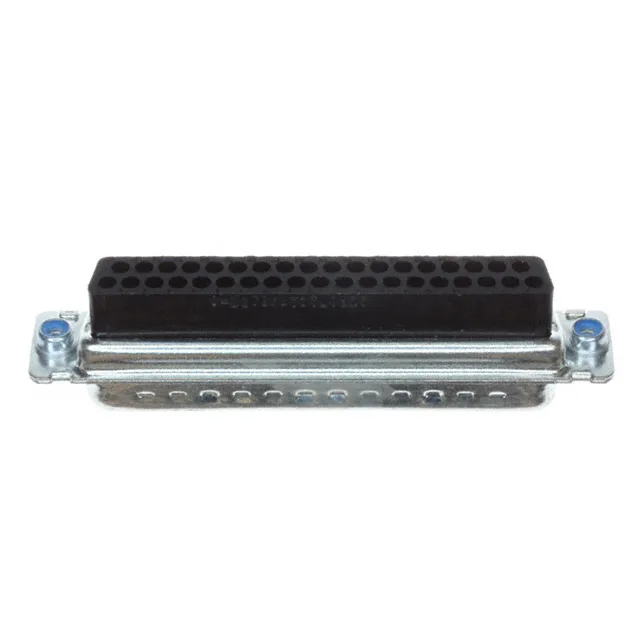

745135-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPLIMITE HDP-20 745135-4, D-Sub Plug Housing, 37 Pos

MPN745135-4
Active

TE Connectivity AMPLIMITE HDP-20 D-Sub housing, plug for male contacts, 37 positions, 2 rows, free-hanging (in-line), shell size 4 (DC, C), steel shell with tin plating, 200µin, grounding indents, cable-side 4-40 flange, black PA nylon glass-filled, contacts not included, bulk.

$10.8400Ref. price · indicative, final on quote
745135-4 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

745135-4 Technical Specifications
ParameterValue
SeriesAMPLIMITE HDP-20
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typePlug for Male Contacts
Shell size, connector layout4 (DC, C)
ColorBlack
Dielectric materialPolyamide (PA), Nylon, Glass Filled
Shell material, finishSteel, Tin Plated
NoteContacts Not Included
PackageBulk
FeaturesGrounding Indents
Flange featureCable Side (4-40)
Rows2
Positions37
Shell finish thickness200µin (5.08µm)

Product details

37-Position D-Sub Plug Housing — What You're Getting

The TE Connectivity AMPLIMITE HDP-20 745135-4 is a 37-position D-Sub plug housing for male crimp contacts, laid out in two rows. It's the shell and dielectric assembly only — the crimp contacts are ordered separately. The shell size is 4 (DC, C), which is the standard layout for a 37-position D-Sub.

Grounding Indents and Shell Finish

The steel shell carries a tin plating at 200µin (5.08µm) thickness — heavy enough for repeated mating in an industrial harness without the plating wearing through. That matters if you're running this in a noisy electrical cabinet or near VFD cabling.

Flange and Mounting Detail

The flange is on the cable side and uses UNC 4-40 threaded inserts — the standard for D-Sub locking. You'll need a mating receptacle with the same 4-40 female thread or slide-lock hardware to secure the pair. The housing is black, moulded in glass-filled polyamide (nylon).

Frequently asked questions

Does 745135-4 include contacts?

No. The 745135-4 is a housing only — the crimp contacts are not included and must be ordered separately. The TE part number for the male crimp contact is typically the AMPLIMITE HDP-20 pin contact, sized for the wire gauge you're terminating.

What is the pin count and row configuration for 745135-4?

37 positions arranged in two rows. The shell layout is size 4 (DC, C), which is the standard D-Sub footprint for a 37-position connector.

Is 745135-4 RoHS compliant?

Yes, it is ROHS3 compliant.

Where can I buy 745135-4?

Availability and pricing confirmed at quote time.
