TE Connectivity AMP Connectors 745183-7 — D-Sub Cable Assemblies

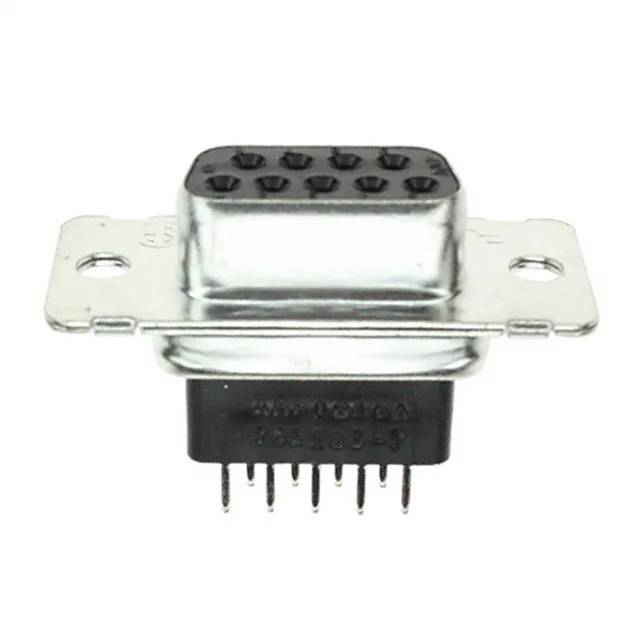

TE 745183-7 AMPLIMITE HDP-20 D-Sub Receptacle, 9 Pos, 6A

MPN745183-7
Active

TE Connectivity AMPLIMITE HDP-20 D-Sub receptacle, 745183-7, 9 positions, 2 rows, 6A, 125V, through-hole solder, gold-plated phosphor bronze contacts, UL94 V-0, black thermoplastic housing.

$11.8000Ref. price · indicative, final on quote
RoHSNot applicable
SeriesAMPLIMITE HDP-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

745183-7 key specifications
ParameterValue
SeriesAMPLIMITE HDP-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated

All specifications

745183-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions9

Product details

It's the standard DE-9 (E shell size) layout, meaning it mates with any standard 9-position D-sub plug — the pinout is the classic RS-232 / serial port arrangement, though the connector itself is signal-rated, not protocol-specific.

Rated 6A per contact at 125V — that's typical signal-level current for a standard-density D-sub. The unthreaded flange (housing/shell, no jackscrews included) means you'll need to order the 4-40 screw-lock hardware separately if vibration is a concern — hand-tight should seal it, but a half-turn loose is a dropout in a high-shake panel.

Frequently asked questions

Is 745183-7 RoHS compliant?

RoHS compliance is standard for TE's current AMPLIMITE HDP-20 production. The material set — gold-plated phosphor bronze contacts, UL94 V-0 thermoplastic housing, tin-plated steel shell — is consistent with RoHS requirements, though no separate RoHS certificate is listed in this record.
