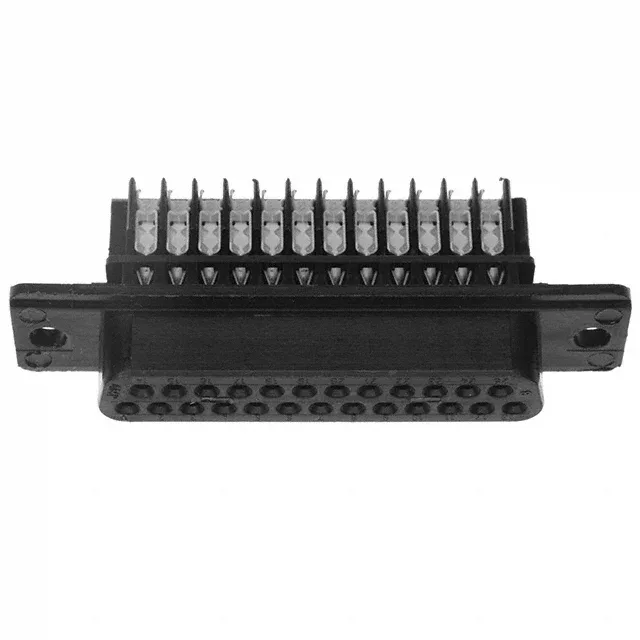

TE Connectivity AMPLIMITE HDE-20, D-Sub receptacle, 25 positions, 2 rows, IDC termination, 22-26 AWG, gold 30.0µin contact finish, free hanging, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HDE-20 |
| Gender | Signal |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Wire gauge | 22-26 AWG |
| Shell size, connector layout | 3 (DB, B) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Termination | IDC, Discrete Wire |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 25 |
| Contact finish thickness | 30.0µin (0.76µm) |
The unthreaded housing/shell flange means it mates with standard D-sub backshells or hoods that use jackscrews for retention.
For this 25-position, 2-row receptacle, the wire gauge range is 22-26 AWG. The 3 (DB, B) shell size is the standard DB-25 footprint, so it mates with any DB-25 male plug or panel-mount receptacle.
The 745209-7 accepts 22-26 AWG wire for its IDC termination.
Yes, the 745209-7 uses the standard DB-25 shell size (3, DB, B) with an unthreaded housing flange, so it mates with standard D-sub backshells and hoods that use jackscrews for retention.
