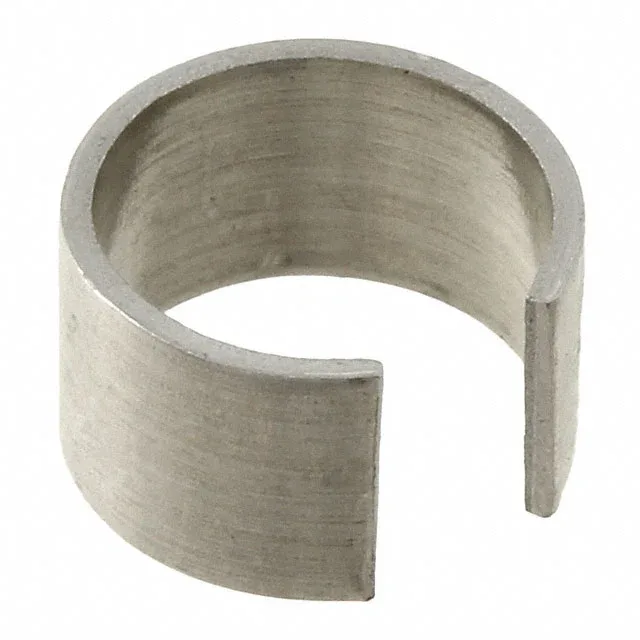

745508-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 745508-4 AMPLIMITE Ferrule, Split Ring, DB15/25

MPN745508-4
Active

TE Connectivity AMPLIMITE ferrule split-ring, 745508-4, for DB15 and DB25 cable clamps, shielded, bulk package.

$1.0400Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

745508-4 Technical Specifications
ParameterValue
SeriesAMPLIMITE
Accessory typeFerrule, Split Ring
PackageBulk
FeaturesShielded
Positions15, 25
For use with (Related products)AMPLIMITE Series Cable Clamps

Product details

What This Ferrule Does in an AMPLIMITE Assembly

The TE Connectivity 745508-4 is a split-ring ferrule from the AMPLIMITE series, designed for use with AMPLIMITE Series cable clamps. It fits both 15- and 25-position D-sub backshells, cinching the cable shield termination before the clamp body closes. The split-ring shape lets it compress evenly around the cable jacket, holding the braid or foil shield against the clamp's inner bore for a continuous ground path.

Position Fit — DB15 and DB25

This ferrule covers two shell sizes: 15 and 25 positions. The same part serves both shell counts.

Shielded Construction and Bulk Packaging

The ferrule carries a Shielded feature designation — the metal split ring provides the contact surface for the cable shield, not just a mechanical clamp. It ships in Bulk packaging, so you get loose parts for bench or harness-board assembly rather than tape-and-reel.

Frequently asked questions

What is the TE Connectivity 745508-4 ferrule used for?

The 745508-4 is a split-ring ferrule that cinches the cable shield inside an AMPLIMITE D-sub cable clamp. It fits DB15 and DB25 backshells, providing the metal-to-metal contact path for shield termination before the clamp closes.

Does 745508-4 work with DB15 connectors?

Yes. The ferrule is listed for 15 and 25 positions, so it works with both DB15 and DB25 cable clamps in the AMPLIMITE series.
