TE AMPLIMITE HD-20 745782-4, 15-Pos D-Sub Receptacle, 6A

MPN745782-4
Active

TE Connectivity AMPLIMITE HD-20 745782-4, D-Sub receptacle, 15 positions, 2 rows, right-angle through-hole solder, 30.0µin gold contacts, 6A, 125V, shell size DA, black thermoplastic, UL94 V-0.

$5.7300Ref. price · indicative, final on quote
745782-4 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

745782-4 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesGround Strap
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions15
Contact finish thickness30.0µin (0.76µm)

Product details

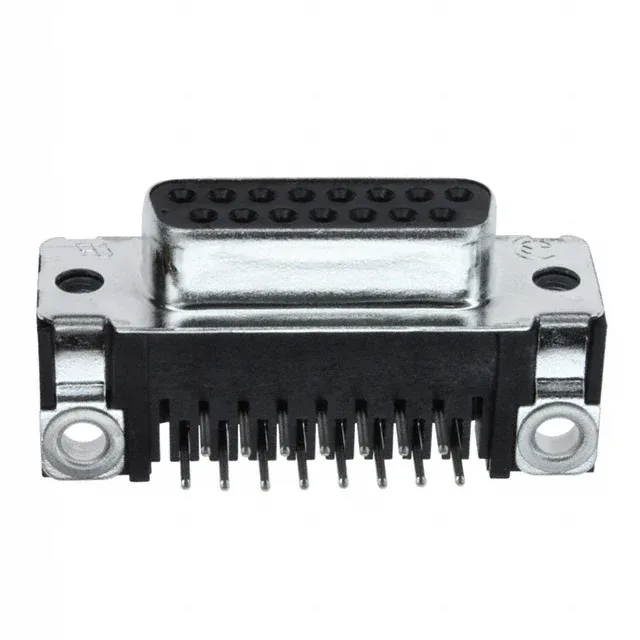

The TE Connectivity AMPLIMITE HD-20 745782-4 is a 15-position D-sub receptacle, shell size DA, with female sockets arranged in two rows. This is the standard-density layout for a DB-15 shell — the same footprint used across the HD-20 series for signal I/O on industrial controllers, test equipment, and serial data interfaces.

Through-hole right-angle mounting with solder termination. The flange feature uses 4-40 threaded inserts (housing/shell) for panel-mount or bracket retention — standard for D-sub connectors where the cable strain is taken by the shell, not the solder joints. The backset spacing of 0.318" (8.08mm) sets the distance from the PCB to the mounting face; verify that your enclosure standoffs or panel thickness clear this dimension before layout.

Frequently asked questions

Is 745782-4 RoHS compliant?

No, this variant is listed as RoHS non-compliant. If your application requires RoHS compliance, consider the lead-free alternatives in the same AMPLIMITE HD-20 series, such as the 3-1393480-8 or 8-1437045-3, which are available in Box or Bulk packaging.
