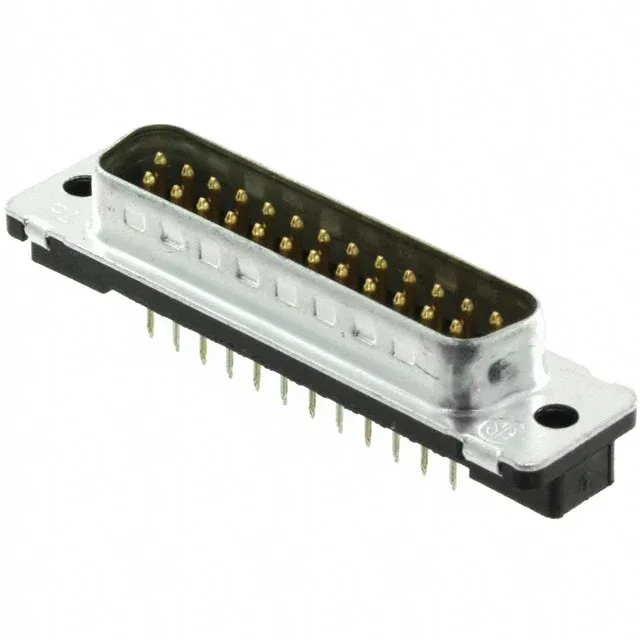

TE Connectivity 745968-2 AMPLIMITE HD-20 D-Sub Plug, 25-Pin

MPN745968-2
Active

TE Connectivity AMPLIMITE HD-20 D-Sub plug, 25 positions, 2 rows, solder termination, through-hole, gold flash contacts, 6A, 125V, shell size DB-25.

$13.1000Ref. price · indicative, final on quote
745968-2 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

745968-2 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
FeaturesGrounding Indents
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions25
Contact finish thicknessFlash

Product details

Wiring a DB-25 Panel Port

The TE Connectivity 745968-2 is a 25-position D-Sub plug from the AMPLIMITE HD-20 series, configured as a male pin connector in a DB-25 shell size. It terminates via solder cups to the through-hole PCB pins, with the unthreaded housing flange accepting standard D-sub backshells or hoods for cable strain relief. Gold flash on the brass contacts handles routine mating cycles in signal-level applications, while the steel shell with tin plating and grounding indents provides a low-impedance path to bleed shield currents before they reach the signal pins.
