TE Connectivity AMP Connectors 746611-6

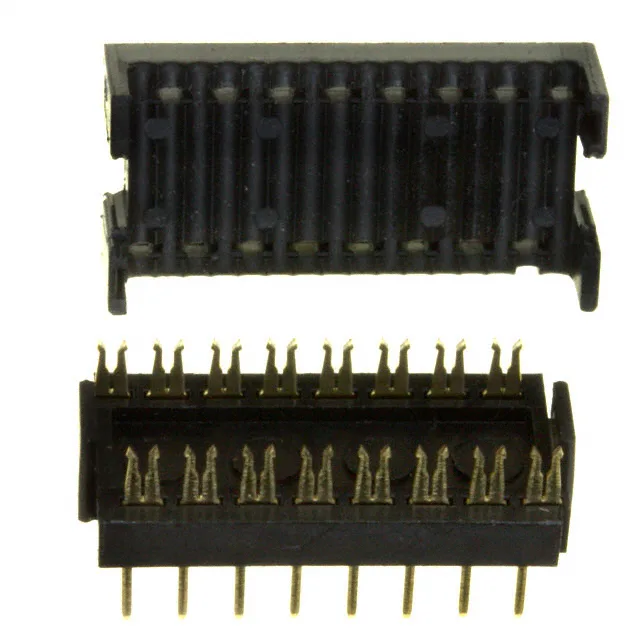

746611-6 TE Connectivity AMP-Latch 16-Pin DIP Header IDC

MPN 746611-6
Active

TE Connectivity AMP-Latch series, 746611-6, 16-position DIP header, IDC termination, 0.050" cable pitch, 0.100" board-side pitch, 30 µin gold, through-hole, active

$4.8100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

746611-6 specifications
ParameterValue
SeriesAMP-Latch
MountingThrough Hole
Connector typeRibbon Cable, DIP Header
Wire gauge28 AWG, Stranded; 26-30 AWG, Solid
Cable pitch0.050\" (1.27mm)
Cable terminationIDC
ColorBlack
PackageTray
FeaturesFeed Through
Row spacing0.300\" (7.62mm)
Contact finishGold
Rows2
Board-Side pitch0.100\" (2.54mm)
Positions16
Contact finish thickness30.0µin (0.76µm)

Product details

16-pin DIP header for IDC ribbon cable

The 746611-6: That pitch transition is the whole point — it lets a standard ribbon cable land on a DIP footprint without a separate adapter.

Cable termination is IDC, and the connector accepts 28 AWG stranded wire or 26-30 AWG solid. That covers the common ribbon cable gauges used in mass-termination harnesses — no need to change wire stock if you're running 28 AWG stranded. The housing is black, with a feed-through feature that lets the cable pass straight through the connector body — useful for daisy-chaining or when the cable exit needs to be on the same side as the board.

Peer comparison: 1-216791-6

The closest functional sibling is 1-216791-6, also a 16-position AMP-Latch DIP header. The key difference: 1-216791-6 uses tin contacts (118.1 µin / 3.00 µm) instead of gold, and its row spacing is 0.100" (2.54 mm) rather than the 0.300" (7.62 mm) on the 746611-6. That row-spacing change means the two parts are not footprint-interchangeable — the 746611-6's wider row pitch takes up more board space. The 1-216791-6 also uses a press-fit mounting option, while the 746611-6 is standard through-hole. If your assembly line is set up for press-fit, the 1-216791-6 is the one to look at; otherwise, the 746611-6 solders in with a standard wave process.
