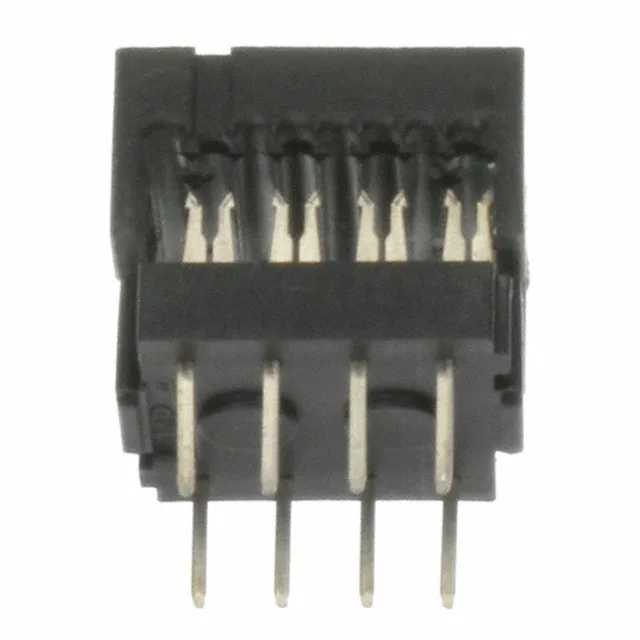

746611-7 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 746611-7 AMP-Latch DIP Header, 8 Pos IDC, 0.100" Pitch

MPN746611-7
Active

TE Connectivity AMP-Latch series, Ribbon Cable DIP Header, 8 positions, 2 rows, 0.100" (2.54mm) board-side pitch, 0.050" (1.27mm) cable pitch, IDC termination, Gold 30.0µin (0.76µm) contact finish, Through Hole mounting, Black.

$3.8700Ref. price · indicative, final on quote
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

746611-7 Technical Specifications
ParameterValue
SeriesAMP-Latch
Mounting typeThrough Hole
Connector typeRibbon Cable, DIP Header
Wire gauge28 AWG, Stranded; 26-30 AWG, Solid
Cable pitch0.050\" (1.27mm)
Cable terminationIDC
ColorBlack
PackageTray
FeaturesFeed Through
Row spacing0.300\" (7.62mm)
Contact finishGold
Rows2
Board-Side pitch0.100\" (2.54mm)
Positions8
Contact finish thickness30.0µin (0.76µm)

Product details

Board-Layout Fit for a DIP Header

The TE Connectivity 746611-7 is an 8-position AMP-Latch DIP header designed for IDC termination to 0.050" (1.27mm) pitch ribbon cable. The two rows are spaced at 0.300" (7.62mm), which matches the common DIP row spacing for 8-position packages.

This header accepts 28 AWG stranded wire and 26-30 AWG solid wire, which covers the common ribbon cable gauges used in mass-termination IDC assemblies. The feed-through feature means the cable passes straight through the connector body, allowing daisy-chaining or pass-through wiring without a dead-end termination. The IDC termination style requires a proper press tool to push the cable into the insulation-displacement slots — no soldering, no crimp contacts to load individually.

Frequently asked questions

Can 746611-7 handle 28 AWG stranded wire?

Yes, the wire gauge range for this header includes 28 AWG stranded wire, as well as 26-30 AWG solid wire.
