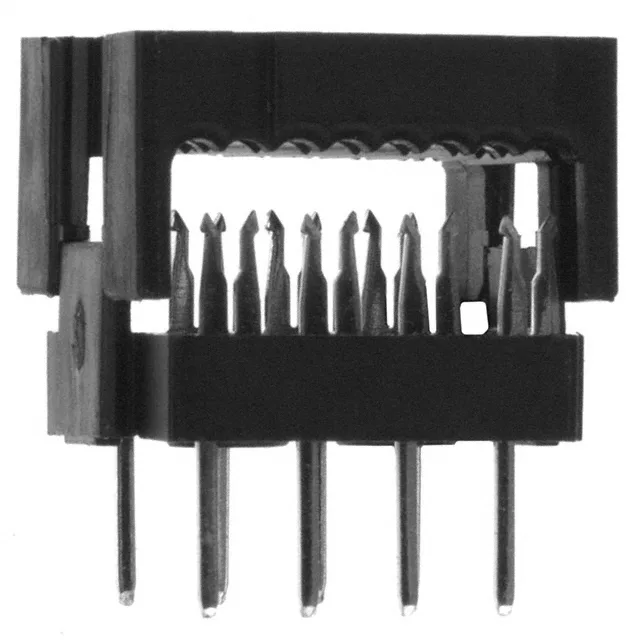

TE AMP-Latch 746613-1 DIP IDC Header, 8 Pos, 0.100" Pitch

MPN746613-1
Active

TE Connectivity AMP-Latch series, Ribbon Cable DIP Header, 8 positions, 2 rows, 0.100" (2.54mm) board-side pitch, 0.050" (1.27mm) cable pitch, Through Hole, IDC termination, Tin-Lead contacts, Black, Bulk.

$2.0200Ref. price · indicative, final on quote
746613-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

746613-1 Technical Specifications
ParameterValue
SeriesAMP-Latch
MountingThrough Hole
Connector typeRibbon Cable, DIP Header
Wire gauge28 AWG, Stranded; 26-30 AWG, Solid
Cable pitch0.050\" (1.27mm)
Cable terminationIDC
ColorBlack
PackageBulk
FeaturesFeed Through
Row spacing0.300\" (7.62mm)
Contact finishTin-Lead
Rows2
Board-Side pitch0.100\" (2.54mm)
Positions8
Contact finish thickness100.0µin (2.54µm)

Product details

DIP Header for Ribbon Cable — IDC Termination

The TE Connectivity AMP-Latch 746613-1 is an 8-position DIP header designed for mass-termination to 0.050" pitch ribbon cable via IDC.

Board-Side Fit and Routing

The 0.100" board-side pitch and dual-row layout place the pins in two rows of four. The 0.300" row spacing is wider than a typical IC DIP, so verify the PCB land pattern matches the AMP-Latch footprint. Through-hole mounting provides a solder joint for the IDC cable strain.

Cable Termination and Wire Range

IDC termination means the ribbon cable is pressed onto the insulation-displacement contacts in one operation — no stripping, no crimping. The specified wire range is 28 AWG stranded or 26-30 AWG solid for the ribbon cable. The 0.050" cable pitch is the standard for 28 AWG rainbow ribbon cable. For a solid build, match the cable to the 28 AWG stranded spec; the 26 AWG solid end of the range gives a tighter grip in the IDC slot but requires a stiffer cable.

Frequently asked questions

Is 746613-1 RoHS compliant?

No, the 746613-1 is RoHS non-compliant due to its tin-lead contact finish. For RoHS-required builds, look at tin-plated AMP-Latch headers in the same series.

What wire gauge works with the 746613-1?

The header accepts 28 AWG stranded ribbon cable or 26-30 AWG solid conductor ribbon cable for the IDC termination. 28 AWG stranded is the standard match.
