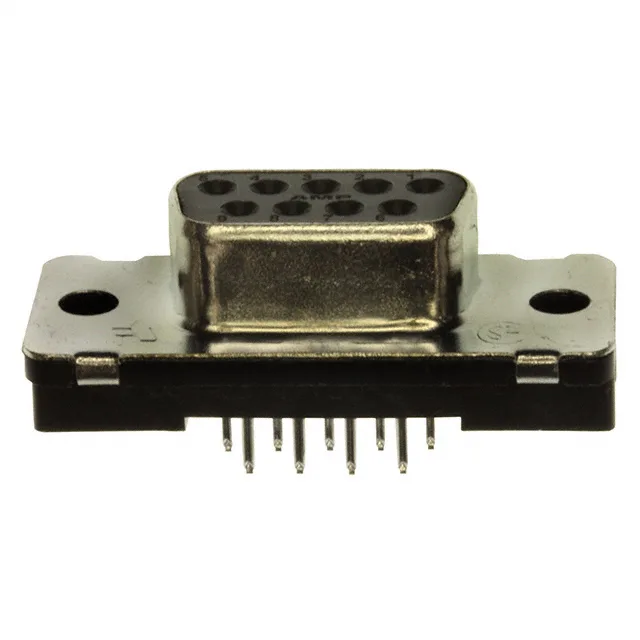

TE AMPLIMITE HD-20 747150-2, 9-Pos D-Sub Receptacle, 6A

MPN 747150-2
Active

TE Connectivity AMPLIMITE HD-20, D-Sub receptacle, 9 positions, 2 rows, vertical through-hole, solder termination, 6A, 125V, gold 30.0µin contacts, steel shell.

$6.6800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSNot applicable
IncotermsDAP / DDP Available
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

747150-2 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated

All specifications

747150-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

Panel-Mount D-Sub for Industrial Signal Wiring

It mounts vertically through a PCB or panel cutout, with unthreaded housing/shell flanges that accept standard D-Sub hardware for cable retention.

Rated 6A per contact at 125V, the current limit here is set by the pin density at the board edge, not the contact itself. In a 9-position shell, the contact-to-contact spacing is tight enough that temperature rise across the row governs the derating curve. For signal loads — RS-232, RS-485, or low-power I/O — 6A is generous headroom. If you are pushing near the limit in a warm cabinet, derate per the AMPLIMITE HD-20 curve in the product drawing.

Mating and Shell Fit

The steel shell with tin plating provides EMI shielding continuity when the mating plug's grounding indents contact the receptacle face. The unthreaded flanges accept a 4-40 screw-lock or slide-lock hardware kit for vibration-resistant panel mounting.
