TE Connectivity AMP Connectors 747238-4 — D-Sub Cable Assemblies

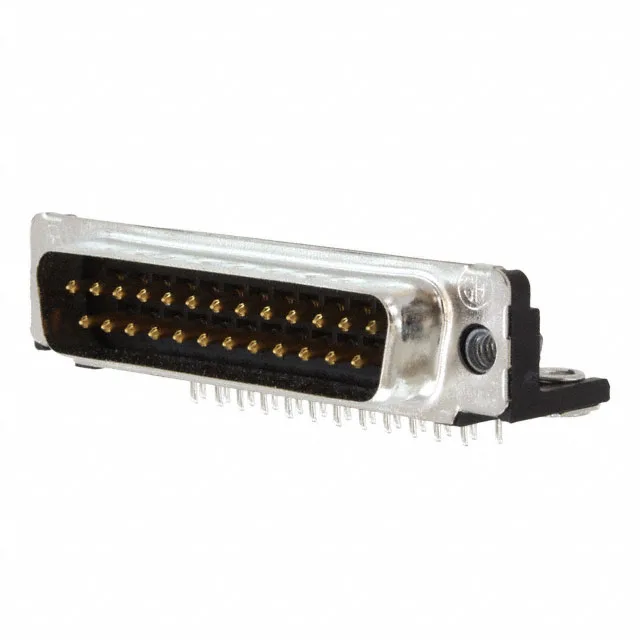

TE Connectivity 747238-4, AMPLIMITE HD-20 D-Sub Plug 25P R/A

MPN747238-4
Active

TE Connectivity AMPLIMITE HD-20 D-Sub, Plug Male Pins, 25 Position, 2 Row, Right Angle Through Hole, Solder, Gold, 6A, 125V, Shell Size 3 (DB B), Black

$8.1500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 747238-4 datasheet (PDF)
RoHSRoHS non-compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

747238-4 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole, Right Angle
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0

All specifications

747238-4 additional specifications
ParameterValue
PackageTray
FeaturesGround Strap, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions25

Product details

25-Position DB-25 Plug with Grounding Indents

The TE Connectivity AMPLIMITE HD-20 747238-4 is a 25-position D-sub plug in the standard DB-25 shell layout (shell size 3, DB, B).

Mounting and Flange Hardware

The flange features threaded inserts for 4-40 jackscrews (housing/shell type), which is the standard hardware for DB-25 panel-mount applications. The backset spacing of 0.318" (8.08mm) sets the distance from the PCB mounting face to the rear of the connector body — verify this dimension against your board edge clearance before layout.

Frequently asked questions

Is the 747238-4 RoHS compliant?

No, the 747238-4 is listed as RoHS non-compliant. If your assembly must meet EU RoHS requirements, this part will not pass compliance without an exemption — flag it for your compliance team before specifying.
