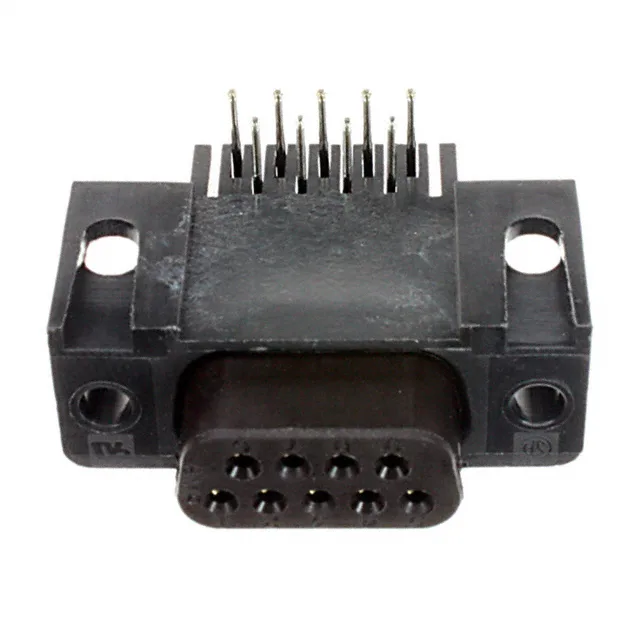

TE Connectivity 747459-2 D-Sub Receptacle, 9-Pos

MPN747459-2
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 9 positions, 2 rows, right-angle through-hole, solder termination, gold-plated phosphor bronze contacts, 6A, 125V, UL94 V-0.

$5.2400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 747459-2 datasheet (PDF)
RoHSNot applicable
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

747459-2 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Material flammability ratingUL94 V-0
PackageTray

All specifications

747459-2 additional specifications
ParameterValue
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Backset spacing0.590\" (14.99mm)
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

Right-Angle D-Sub Receptacle for Board-Edge I/O

The TE Connectivity AMPLIMITE HD-20 747459-2 is a 9-position D-Sub receptacle with female sockets, arranged in two rows.

The unthreaded housing/shell flange means the connector relies on the mating plug's screw-lock hardware or a separate jack-screw kit for retention; the flange itself does not include threaded inserts. Through-hole solder tails provide mechanical anchoring to the PCB, and the 0.590" (14.99 mm) backset spacing gives clearance for the right-angle bend behind the board edge.

Frequently asked questions

What mates with the 747459-2?

This receptacle mates with any standard DE-9 (E-size) D-Sub plug — the shell layout is 1 (DE, E), the industry-standard 9-position footprint.
