25-Position Right-Angle D-Sub Receptacle

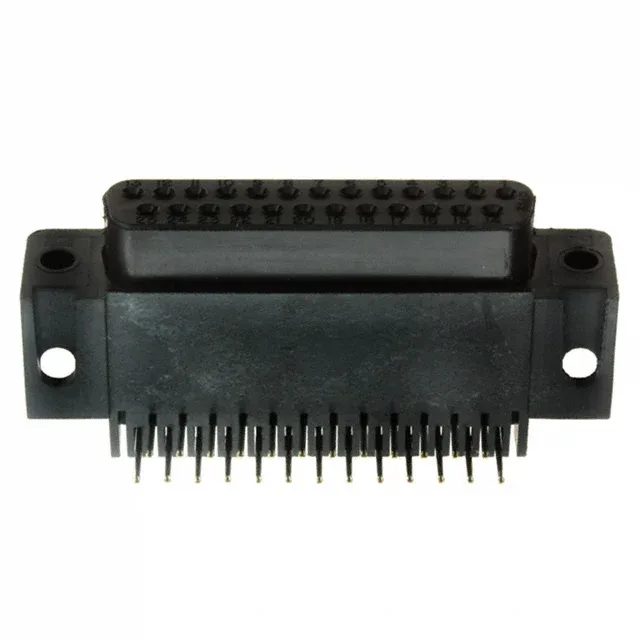

The TE Connectivity 747461-1 is a 25-position D-Sub receptacle from the AMPLIMITE HD-20 series, designed for board-edge signal interconnect. It uses a DB-25 shell layout (3, DB, B) with two rows of female sockets, terminated via through-hole solder tails in a right-angle orientation — the standard footprint for parallel-to-PCB mounting. This is a standard-density D-Sub for I/O, serial, and instrumentation ports where the 25-position count matches the DB-25 cable interface.
What the 6A and 125V Ratings Mean for Fit
The 6A per-contact rating is typical for signal-grade D-Sub contacts — it handles parallel I/O, RS-232, and low-current control lines without issue, but it is not a power contact. The 125V rating matches the standard D-Sub voltage ceiling for signal applications; for higher-voltage industrial bus wiring, a different connector family would be needed. For high-cycle field-service applications, a thicker gold plating variant would be more durable.
The backset spacing of 0.590" (14.99 mm) sets the distance from the board edge to the mounting flange. The housing/shell flange is unthreaded, so panel mounting requires separate hardware through the flange holes.
