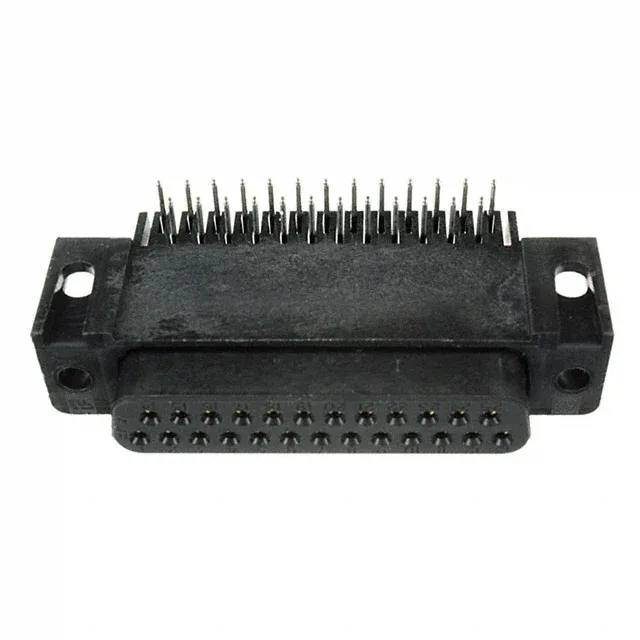

747461-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 747461-2 AMPLIMITE HD-20 D-Sub, 25-Pin, 6A

MPN747461-2
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 25 positions, 2 rows, right-angle through-hole solder, gold-plated contacts, 6A, 125V, shell size DB-3.

$10.7500Ref. price · indicative, final on quote
747461-2 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

747461-2 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Material flammability ratingUL94 V-0
PackageTray
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Backset spacing0.590\" (14.99mm)
Positions25
Contact finish thickness30.0µin (0.76µm)

Product details

What the 25-position count and right-angle orientation mean for your board layout

The TE Connectivity 747461-2 is a 25-position D-sub receptacle from the AMPLIMITE HD-20 series, shell size DB-3. This is the standard-density DB-25 footprint — 25 signal contacts in two rows, rated 6A per contact at 125V. The 0.590" (14.99mm) backset spacing gives clearance for the plug shell and cable strain relief behind the mounting flange.

RoHS compliance status — a sourcing flag

The 747461-2 is listed as RoHS non-compliant. That means the solder tails or contact plating may contain lead or other restricted substances above the threshold. For projects that require full RoHS compliance, the alternative package variants in the same series — such as the bulk-packaged 8-1437045-3 — should be reviewed for their compliance status before BOM commitment.

This receptacle mates with a standard DB-25 plug (male pin) connector of the same AMPLIMITE HD-20 series. The unthreaded housing/shell flange accepts a slide lock or screw-lock retention system — the mounting holes are sized for 4-40 threaded inserts or jackscrews on the mating plug.

Frequently asked questions

Is 747461-2 RoHS compliant?

No, the 747461-2 is listed as RoHS non-compliant. For RoHS-required projects, check the bulk-packaged 8-1437045-3 or other HD-20 variants for their compliance status.

What is the current rating of 747461-2?

The 747461-2 is rated 6A per contact at 125V. This is a standard signal-level rating for a DB-25 D-sub — adequate for serial data lines, I/O signals, and low-power auxiliary circuits.
