TE Connectivity AMP Connectors 747784-3

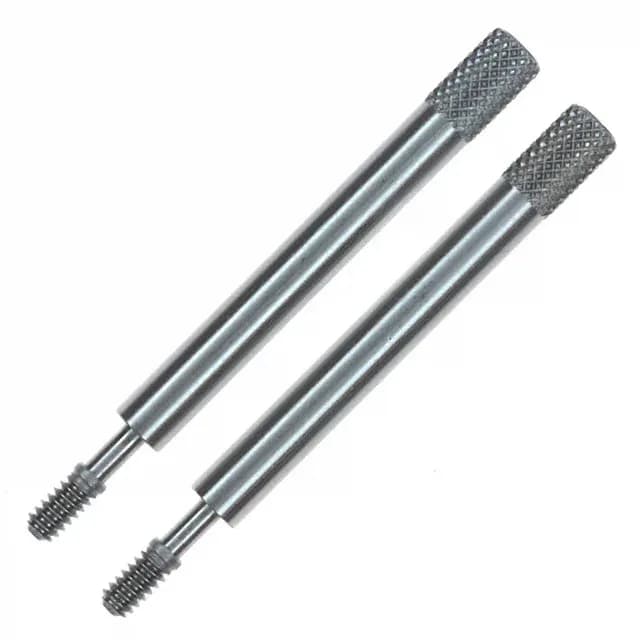

TE 747784-3 AMPLIMITE D-Sub Jackscrew, 4-40 Thread

MPN 747784-3
Active

TE Connectivity AMPLIMITE series D-Sub jackscrew, 747784-3, 4-40 thread, 0.405" below head, 2 per bag, Bulk.

$6.1000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMPLIMITE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

747784-3 specifications
ParameterValue
SeriesAMPLIMITE
Accessory typeJackscrew, Thumb Screw
PackageBulk
Connector size4-40
Length - below head0.405\" (10.29mm)
For use with (Related products)AMPLIMITE Series
Length - threaded portion below head0.210\" (5.33mm)

Product details

The TE Connectivity 747784-3 is a jackscrew (thumb screw) accessory for the AMPLIMITE series of D-Subminiature connectors. The 4-40 thread is the standard UNC size for standard-density D-Sub shells, and the 0.405" (10.29 mm) length below the head gives enough reach to pass through the mating connector's threaded insert and the panel thickness, with the threaded portion below the head measuring 0.210" (5.33 mm). Supplied in bulk bags of 2 pieces.

This jackscrew is designed for use with AMPLIMITE series D-Sub connectors. The 4-40 thread mates with the standard threaded insert found on AMPLIMITE D-Sub receptacles and plug shells.

The bulk packaging (2 per bag) means the order quantity should be specified in multiples of 2 to avoid partial-bag waste.

MPN
747784-3
