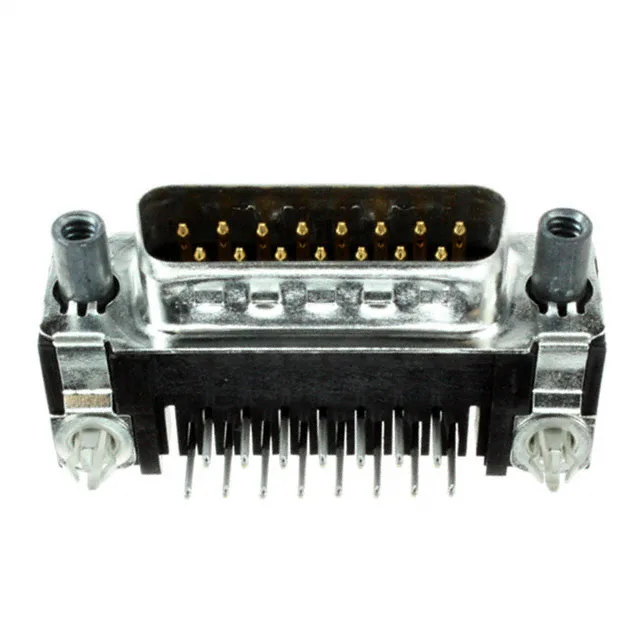

747841-6 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 747841-6 AMPLIMITE HD-20 D-Sub Plug, 15 Pos, 6A

MPN747841-6
Active

TE Connectivity AMPLIMITE HD-20 D-Sub plug, 15 positions, 2 rows, right-angle solder, 6A, 125V, gold contacts, board lock, grounding indents, 4-40 screwlocks, UL94 V-0.

$5.8100Ref. price · indicative, final on quote
747841-6 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

747841-6 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Ground Strap, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions15

Product details

15-Position Right-Angle D-Sub Plug with Board Lock and Grounding Indents

It carries male pins in a 2-row DA (A) shell layout, rated 6A per contact at 125V. Gold contact finish on brass pins handles repeated mating cycles in signal-density applications — the limiting factor for current is the pin density at the board edge, not the contact itself.

Board Lock and Grounding Hardware

This plug includes board locks to anchor the connector through the reflow or wave-solder process, plus a ground strap and grounding indents on the steel shell.

The 747841-6 mates with any standard D-Sub receptacle (female socket) of the same shell size DA-15. The right-angle solder tails exit the rear of the connector, fitting a PCB footprint with 0.318" (8.08 mm) backset spacing — the distance from the panel mounting face to the board edge. For field replacement, the gold-on-brass contacts tolerate repeated mate/unmate cycles without fretting corrosion, though the board locks make this a permanent-install part rather than a frequent-swap connector.

Frequently asked questions

Is 747841-6 RoHS compliant?

No, the 747841-6 is listed as RoHS non-compliant. For RoHS requirements, consider the functionally similar peers 3-1393480-8 or 8-1437045-3 — verify their RoHS status against your BOM.

What is the mating connector for 747841-6?

The 747841-6 mates with any standard D-Sub receptacle (female socket) of the same shell size DA-15, typically with 4-40 jackscrews to engage the female screwlocks on this plug.
