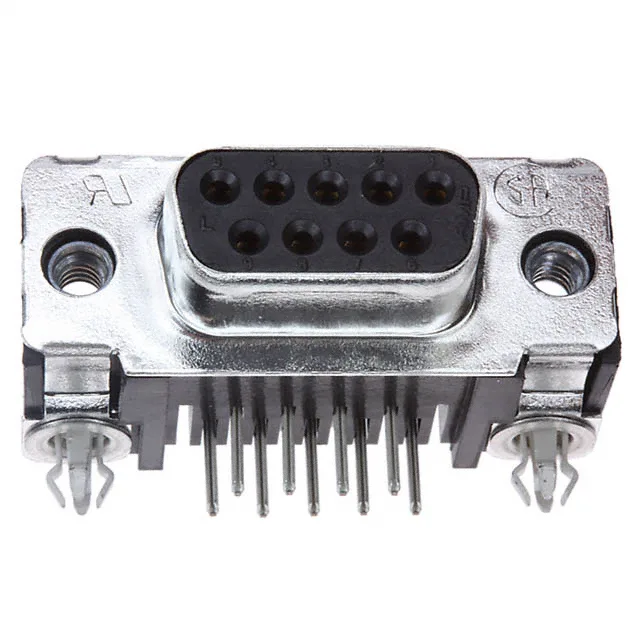

747844-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 747844-4 D-Sub Receptacle, 9 Pos, R/A

MPN747844-4
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 9 positions, 2 rows, right-angle, through-hole, solder termination, gold-plated phosphor bronze contacts, steel shell, board lock, UL94 V-0.

$5.9800Ref. price · indicative, final on quote
747844-4 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

747844-4 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

Right-Angle D-Sub with Board Lock — 9-Position Receptacle

The 0.318" (8.08mm) backset spacing sets the distance from the PCB edge to the mounting flange — check enclosure clearance before layout. The housing/shell flange uses 4-40 threaded inserts for panel or bracket mounting, standard for D-sub hardware.

Mating and Cross-Reference

This receptacle mates with a standard E shell size D-sub plug — the 747844-4 is the female half. The 4-40 threaded inserts accept jack-screws from the mating plug for secure panel-mount connection.

Frequently asked questions

Is the 747844-4 RoHS compliant?

No, the 747844-4 is listed as RoHS non-compliant. Verify your application's exemption requirements before specifying.

Does the 747844-4 include a board lock?

Yes, the 747844-4 features a board lock on the shell for additional PCB retention during soldering and vibration resistance.
