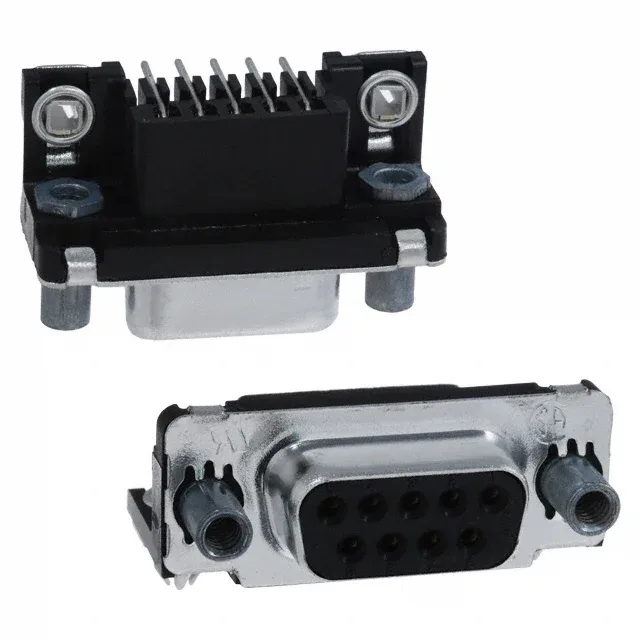

TE Connectivity 747844-5 AMPLIMITE HD-20 D-Sub Receptacle

MPN747844-5
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 747844-5, 9 positions, 2 rows, right-angle through-hole solder, gold flash contacts, 6A, 125V, steel shell with tin plating, board lock, 4-40 screwlock.

$4.7500Ref. price · indicative, final on quote
747844-5 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

747844-5 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions9
Contact finish thicknessFlash

Product details

9-Position D-Sub Receptacle for Board-Edge I/O

It carries a 6A per-contact current rating at 125V, which is the standard current capacity for a DE-size (E) shell — enough for signal-level and moderate power circuits in a compact 9-pin layout.

Right-Angle Mount with Board Lock for Vibration Resistance

The integrated board lock anchors the connector during wave soldering and provides additional shear-force resistance against cable strain in high-vibration environments like industrial controls or test racks.

Operating Range and Material Ratings

This receptacle mates with a standard E shell D-sub plug with 4-40 screwlock posts.

Frequently asked questions

Is the 747844-5 RoHS compliant?

No, the 747844-5 is listed as RoHS non-compliant, meaning it contains lead in the solder termination. This is a consideration for designs requiring full RoHS exemption compliance.

What is the current rating of the 747844-5?

The 747844-5 is rated 6A per contact at 125V, which is the standard current capacity for a DE-size D-sub shell — suitable for signal-level and moderate power circuits in a 9-position layout.
