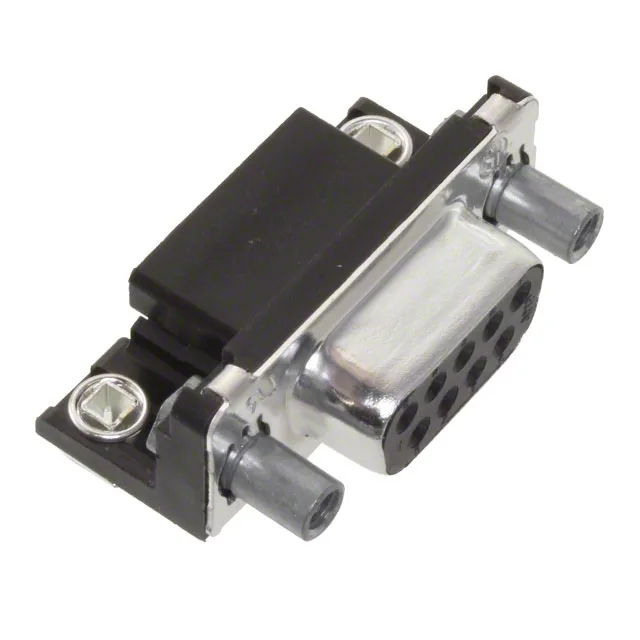

747844-6 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPLIMITE HD-20 747844-6 D-Sub Receptacle, 9 Pos, R/A

MPN747844-6
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 747844-6, 9 positions, 2 rows, right-angle through-hole solder, gold-plated contacts, 6A, 125V, board locks, UL94 V-0.

$6.0800Ref. price · indicative, final on quote
747844-6 datasheet
StockIn Stock (53)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

747844-6 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

9-Position Right-Angle D-Sub, DE-9 Shell, Board Locks

The TE Connectivity AMPLIMITE HD-20 747844-6 is a 9-position D-Sub receptacle with female sockets, arranged in 2 rows, using the standard DE-9 (E) shell layout. The 6A per-contact current rating and 125V voltage rating suit this connector for signal-level and moderate-power interfaces — think RS-232, instrumentation links, or control bus connections — not high-current bus or power distribution.

This receptacle mates with a standard E shell D-Sub plug — the male counterpart with solder cups or IDC termination. The flange uses female screwlocks (4-40 thread) on the mating side, so the matching plug must carry male screwlocks or a slide-lock mechanism for a secure, vibration-resistant connection. Termination is through-hole solder only — no press-fit or IDC option.

Frequently asked questions

Is the 747844-6 RoHS compliant?

No, the 747844-6 is listed as RoHS non-compliant. If your application requires RoHS compliance, check the BOM requirements before ordering.

What is the mating connector for the 747844-6?

The 747844-6 mates with a standard DE-9 (E shell) D-Sub plug — the male counterpart. The plug must have male screwlocks or a slide-lock to engage the female 4-40 screwlocks on this receptacle.

Does the 747844-6 have board locks?

Yes, the 747844-6 includes board locks on the shell for mechanical retention during soldering and vibration resistance.
