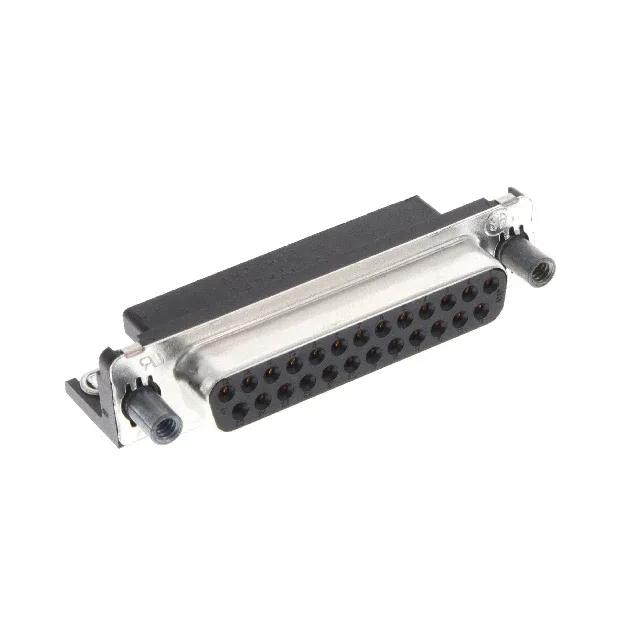

DB-25 Right-Angle Receptacle with Board Lock and Ground Strap
This is the female (socket) side of a standard DB-25 interface, mating with a male DB-25 plug. The shell size and layout are 3 (DB, B), meaning the 25 pins are arranged in two rows within a D-shaped steel shell with a tin-plated finish. Key features include a board lock for positive retention during soldering and a ground strap that bonds the shell to the PCB ground plane. The flange carries a female screwlock with 4-40 thread on the mating side, matching the standard jack-screw pattern.
6 A per Contact, 125 V — Signal-Duty Range
Each contact is rated 6 A at 125 V. In a dense 25-position layout, derating per contact is expected when all positions carry current.
Right-Angle Solder Termination with Board Lock
The ground strap provides a low-impedance path from the steel shell to the PCB ground, reducing radiated emissions from the cable shield.
