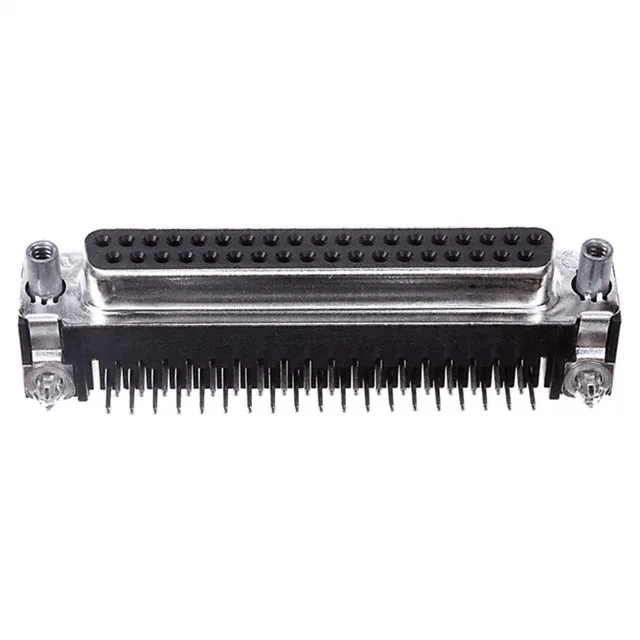

747847-6 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 747847-6 AMPLIMITE HD-20 D-Sub Receptacle

MPN747847-6
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 37 positions, 2 rows, right-angle through-hole solder, 6A, 125V, gold-plated contacts, board lock and ground strap, UL94 V-0.

$13.6700Ref. price · indicative, final on quote
747847-6 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

747847-6 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout4 (DC, C)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Ground Strap
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions37
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity 747847-6 is a 37-position D-Sub receptacle from the AMPLIMITE HD-20 series, configured as a right-angle through-hole solder mount. It accepts the standard DC (C-shell) D-Sub plug with 4-40 screwlock retention on the mating face.

Board Retention and Mechanical Fit

The backset spacing of 0.318" (8.08mm) sets the distance from the PCB to the mounting flange — a dimension to check if the enclosure wall or panel has a tight clearance budget.

Ratings and Duty

The 125V rating is the working voltage for the signal pair — standard D-Sub creepage distances support this at the 0.108" pitch typical of the HD-20 layout.

Frequently asked questions

Is 747847-6 a standard or high density D-sub connector?

The 747847-6 is a standard-density D-Sub receptacle. The shell size and connector layout are listed as 4 (DC, C), which is the standard 37-position shell — not the high-density variant that packs more contacts into the same shell size.

Does 747847-6 include board lock and ground strap?

Yes, the 747847-6 includes both a board lock for through-hole solder retention and a ground strap for shell-to-board grounding. These are listed as standard features on this part.

What is the mating connector for 747847-6?

The 747847-6 mates with a standard 37-position D-Sub plug (male pin connector) having the DC or C shell layout, secured by 4-40 female screwlocks on the receptacle side. The mating half is typically a TE AMPLIMITE HD-20 series plug or any industry-standard D-Sub plug with the same shell size and screwlock spacing.
