TE Connectivity 747871-8 AMPLIMITE HD-20 D-Sub Plug, 9 Pos

MPN 747871-8
Active

TE Connectivity AMPLIMITE HD-20 D-Sub plug, 747871-8, 9 positions, 2 rows, 6A, 125V, through-hole solder, gold contacts, steel shell with tin plating, UL94 V-0.

$7.3300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS non-compliant
IncotermsDAP / DDP Available
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

747871-8 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated

All specifications

747871-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
FeaturesGrounding Indents
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions9

Product details

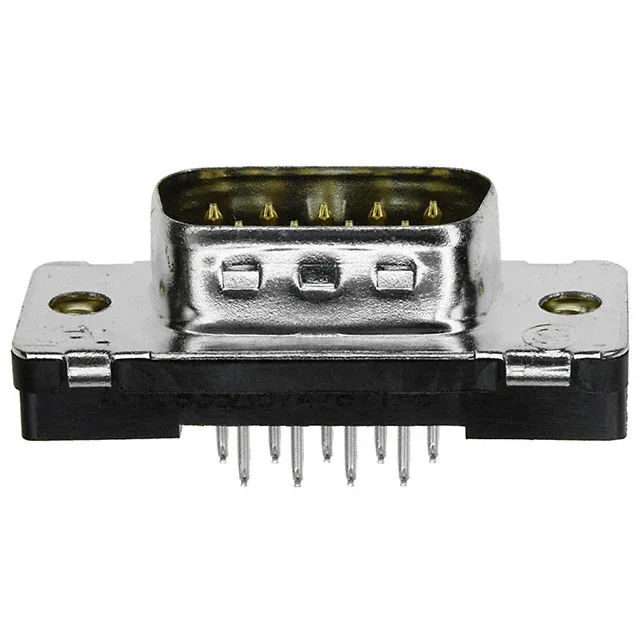

D-Sub Plug, 9 Positions, Vertical Solder Termination

It carries a 6 A per-contact current rating at 125 V, with gold-plated brass contacts and a steel shell finished in tin.

Shell Layout and Mounting Hardware

The connector uses shell size 1 (DE, E) layout, the standard footprint for a 9-position D-sub. The flange features integrated 4-40 threaded inserts in the housing/shell, so the mating half secures with standard D-sub jackscrews — no loose hardware to lose during field assembly.
