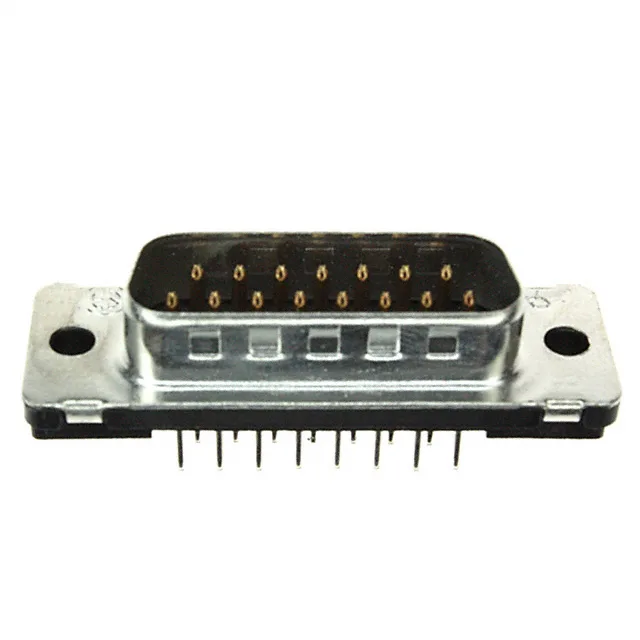

747872-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPLIMITE HD-20 747872-4, 15-Pin D-Sub Plug, 6A

MPN747872-4
Active

TE Connectivity AMPLIMITE HD-20 D-Sub Plug, 15 Positions, 2 Rows, Through Hole, Solder Termination, Gold Contacts, 6A, 125V, Shell Size DA (A), Black, UL94 V-0.

$7.9900Ref. price · indicative, final on quote
747872-4 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

747872-4 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
FeaturesGrounding Indents
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions15

Product details

15-Pin D-Sub Plug for Legacy and Industrial I/O

The TE Connectivity AMPLIMITE HD-20 747872-4 is a 15-position D-sub plug, shell size DA (A), built for signal-level interconnects in equipment racks, industrial controllers, and test fixtures. The steel shell with tin plating and grounding indents provides a continuous shield path from the cable braid to the mating receptacle — critical for keeping noise off the signal lines in a crowded cabinet.

Shell and Contact Construction

The flange feature is housing/shell with unthreaded holes.

Frequently asked questions

What are the specifications and pinout of 747872-4?

Engineers need to verify fit and signal integrity before designing in the part.

What is the price and stock status of 747872-4?

Buyers need cost and availability to make procurement decisions.

Is 747872-4 a direct replacement for a failed D-sub connector?

Maintenance techs need to know if this part can replace an existing unit without redesign.

Is 747872-4 obsolete or End-of-Life?

Brokers and buyers check lifecycle to avoid supply disruptions in production.

What is the equivalent part for 747872-4 from other brands?

Sourcing may need alternatives for cost or availability reasons.

Where can I buy 747872-4 with immediate delivery?

Transactional: final purchase step for urgent requirements.
