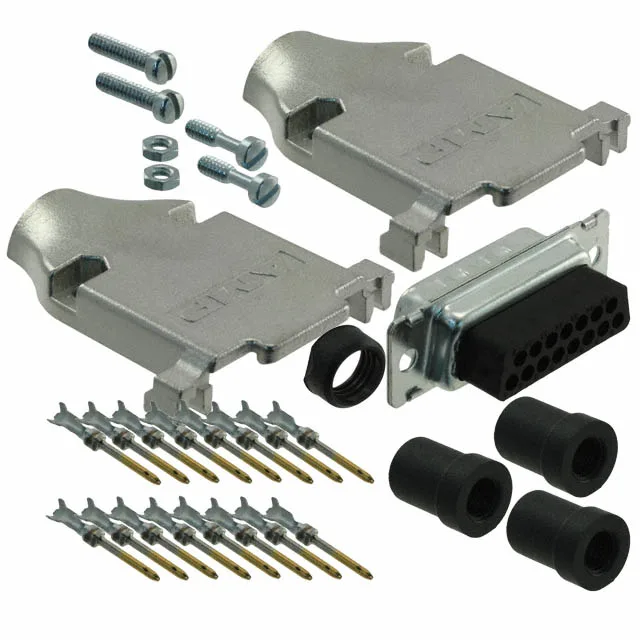

TE Connectivity 749805-8 AMPLIMITE HDP-20 D-Sub Plug, 15 Pos

MPN749805-8
Active

TE Connectivity AMPLIMITE HDP-20 D-Sub plug, 15 positions, 2 rows, male pins, crimp termination, gold flash contacts, shielded, UL94 V-0, black, bulk.

$21.9800Ref. price · indicative, final on quote
749805-8 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

749805-8 Technical Specifications
ParameterValue
SeriesAMPLIMITE HDP-20
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pins
Voltage rating250V
Current ratingVaries by Wire Gauge
Wire gauge20-24 AWG
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialPolyamide (PA), Nylon, Glass Filled
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
FeaturesGrounding Indents, Shielded
TerminationCrimp
Contact finishGold
Flange featureCable Side, Male Short Screw (4-40)
Rows2
Positions15
Contact finish thicknessFlash

Product details

Wiring and Termination — What the Crimp Means on the Bench

This plug accepts 20-24 AWG wire through its crimp terminals. The contacts are brass with gold flash plating. The flange uses a cable-side, male short screw (4-40).

How It Sits Against Its Siblings

The 749805-8 is the 15-position DA-size member of the AMPLIMITE HDP-20 crimp plug family. The unthreaded sibling 749808-7 (25-position DB) drops the 4-40 screw and the shielding — it uses an unthreaded housing shell instead. If your application needs the grounding indents and the screw-lock retention, the 749805-8 keeps both; the 749808-7 is a lighter-duty option for non-shielded, non-locking harnesses.

Frequently asked questions

What is the mating connector for 749805-8?

The 749805-8 is a D-Sub plug with male pins. It mates with a standard DA-15 (15-position) D-Sub receptacle — look for a female crimp or solder-cup receptacle in the AMPLIMITE HDP-20 series with the same shell size and a 4-40 female screw-lock flange.
