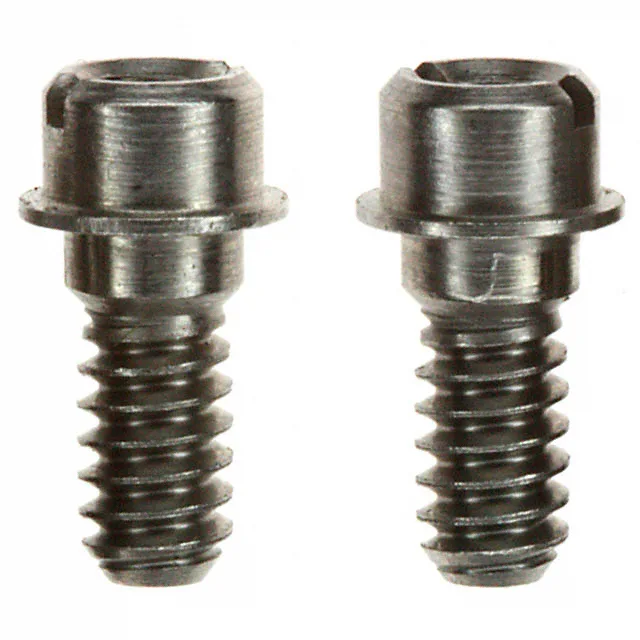

750644-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 750644-1 Jackscrew Socket, AMPLIMITE

MPN750644-1
Obsolete

TE Connectivity AMPLIMITE series, 750644-1 jackscrew socket, slotted, thread size 2-56 socket and 4-40 screw, 0.255" (6.48 mm) length below head, bulk package.

$10.8500Ref. price · indicative, final on quote
750644-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

750644-1 Technical Specifications
ParameterValue
SeriesAMPLIMITE
Accessory typeJackscrew Socket, Slotted
PackageBulk
Thread size2-56 Socket, 4-40 Screw
Length - below head0.255\" (6.48mm)
For use with (Related products)AMPLIMITE Series

Product details

AMPLIMITE Jackscrew Socket — 2-56 Socket, 4-40 Screw

The TE Connectivity 750644-1 is a jackscrew socket accessory from the AMPLIMITE series, designed for use with standard D-subminiature connectors. It combines a 2-56 socket thread on the panel side with a 4-40 screw thread on the connector side, allowing the jackscrew to secure a D-sub to a panel or mating half. The slotted drive head accepts a flat-blade screwdriver for field installation or removal. Length below head is 0.255" (6.48 mm), which sets the panel thickness the jackscrew can accommodate when fully threaded.

The 750644-1 mates with standard AMPLIMITE D-sub connectors that accept a 4-40 screw on the connector face. The 2-56 socket end threads onto a mating panel stud or another jackscrew. The slotted drive allows torque application without a specialized tool — a standard #1 or #2 flat-blade screwdriver works. The 0.255" below-head length means the threaded portion extends through panels up to roughly 6.5 mm thick before the head seats.

Frequently asked questions

Where can I buy 750644-1 now?

Submit an RFQ for current pricing and availability — confirmed at quote time.

Is 750644-1 obsolete?

Yes, TE Connectivity lists the 750644-1 as Obsolete. No official replacement part number has been published for this jackscrew socket.

What is the thread size of 750644-1?

The 750644-1 has a 2-56 socket thread on one end and a 4-40 screw thread on the other, with a slotted drive head.

Is 750644-1 compatible with AMPLIMITE D-sub connectors?

Yes, the 750644-1 is designed for use with AMPLIMITE series D-sub connectors. The 4-40 screw thread mates with the standard threaded insert on the connector face.
