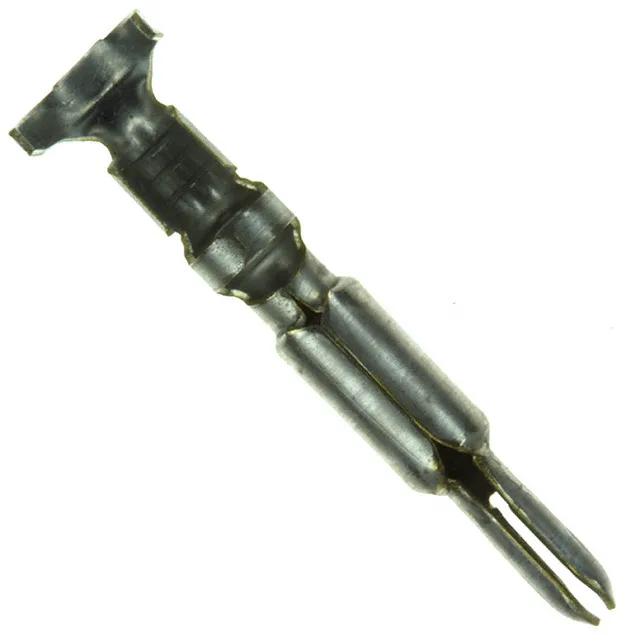

770005-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 770005-1 Split Pin Contact 14-20 AWG Tin Crimp

MPN770005-1
Active

TE Connectivity AMP Connectors Universal MATE-N-LOK II split pin contact, order code 770005-1, 14-20 AWG, tin-plated, crimp termination, Tape & Reel (TR) and Cut Tape (CT) packaging.

$0.22Ref. price · indicative, final on quote
770005-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

770005-1 Technical Specifications
ParameterValue
SeriesUniversal MATE-N-LOK II
Wire gauge14-20 AWG
PackageTape & Reel (TR); Cut Tape (CT)
Pin or socketSplit Pin
Contact finishTin
Contact terminationCrimp

Product details

Split pin for Universal MATE-N-LOK II housings

The 770005-1 is a tin-plated split pin contact for TE's Universal MATE-N-LOK II series, accepting 14-20 AWG wire via a crimp termination. The split-pin design provides a compliant mating beam within the housing cavity, and the tin finish suits moderate-cycle signal and power applications.

Positioning within the split-pin range

Within the Universal MATE-N-LOK II split-pin family, the 770005-1 (14-20 AWG) sits alongside the 770007-1 (same wire range, same tin finish) and the 770009-1 (18-24 AWG, tin). The 770005-3 is a standard pin rather than a split pin, so the split-pin beam compliance is absent — the 770005-1 and 770007-1 share the same wire gauge and plating, differing only in the base part number suffix.

Frequently asked questions

Will 770005-1 drop into a panel that was specified around 770007-1 without rewiring?

Yes — both the 770005-1 and 770007-1 are split-pin contacts for the Universal MATE-N-LOK II series, accepting 14-20 AWG wire with tin plating and crimp termination. The two are functionally interchangeable in the same housing cavity.
