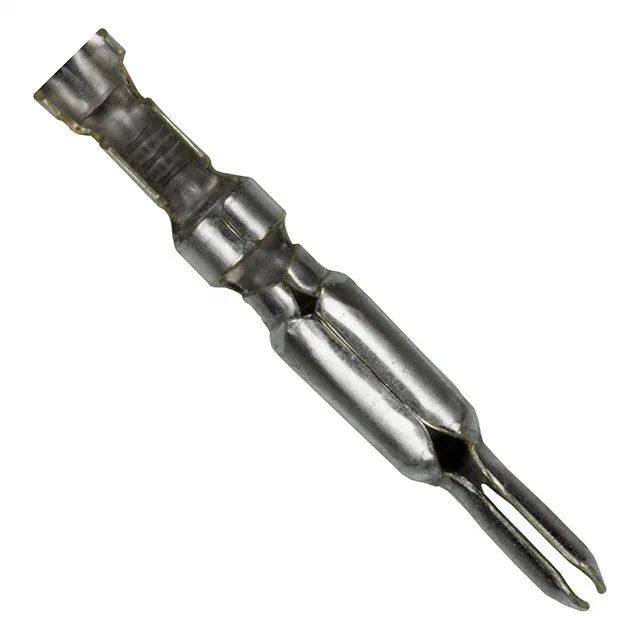

770009-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

770009-1 TE Connectivity Universal MATE-N-LOK II Split Pin

MPN770009-1
Active

TE Connectivity Universal MATE-N-LOK II split pin, order code 770009-1, 18-24 AWG, tin-plated contact, crimp termination, Tape & Reel packaging.

$0.15Ref. price · indicative, final on quote
770009-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

770009-1 Technical Specifications
ParameterValue
SeriesUniversal MATE-N-LOK II
Wire gauge18-24 AWG
PackageTape & Reel (TR); Cut Tape (CT)
Pin or socketSplit Pin
Contact finishTin
Contact terminationCrimp

Product details

Split pin for 18-24 AWG wire

The 770009-1 is a tin-plated split pin from the Universal MATE-N-LOK II series, designed for crimp termination on 18-24 AWG wire. The split-pin geometry seats into the mating housing and the tin finish suits moderate-cycle applications where gold is not required.

Wire gauge across the series

The 770009-1 covers 18-24 AWG, while the 770007-1 and 770005-1 handle 14-20 AWG and the 770003-3 accepts 10-12 AWG — select the contact by the wire size, not the housing.

Frequently asked questions

Will 770009-1 drop into a panel specified around 770007-1 without rewiring?

No — the 770009-1 accepts 18-24 AWG wire, while the 770007-1 is rated for 14-20 AWG. The contact body size differs; the housing may not retain the wrong wire-gauge contact.
