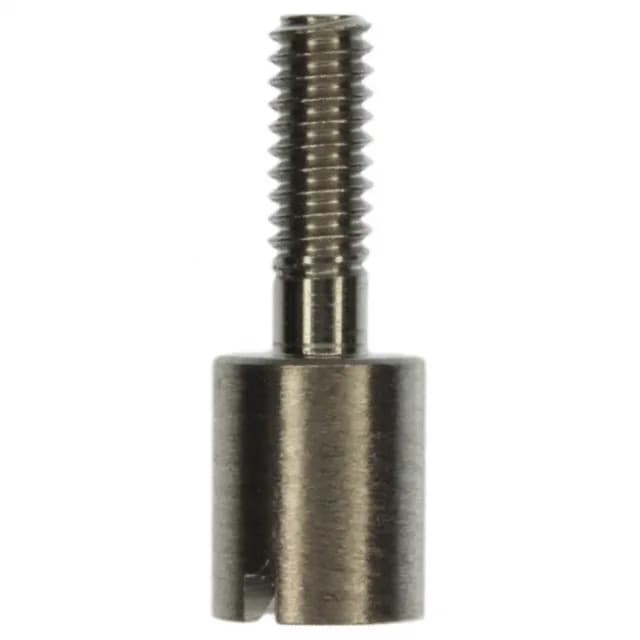

TE Connectivity 787004-3 CHAMP Jackscrew Socket, M2 Thread

MPN 787004-3
Active

TE Connectivity CHAMP series jackscrew socket, slotted, M2 thread, 6.00 mm length below head, for CHAMP D-Sub connectors, box packaging.

$1.9500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesCHAMP
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

787004-3 specifications
ParameterValue
SeriesCHAMP
Accessory typeJackscrew Socket, Slotted
PackageBox
Connector sizeM2 Socket, M2 Screw
Length - below head0.236\" (6.00mm)
For use with (Related products)CHAMP D-Sub Connectors

Product details

The TE Connectivity 787004-3 is a jackscrew socket from the CHAMP series, designed as a board-mount screwlock accessory for CHAMP D-Sub connectors. It uses an M2 socket thread with an M2 screw, and the slotted drive allows field adjustment with a standard screwdriver. The 0.236" (6.00 mm) length below head sets the standoff height between the connector face and the PCB — enough clearance for most CHAMP right-angle or vertical-mount receptacles without bottoming out on the board.

Thread and Mechanical Fit

The M2 socket and M2 screw thread pair is the standard mechanical interface for CHAMP D-Sub screwlocks. This 787004-3 mates with the matching jackscrew on the mating half — typically a female screwlock on the cable-side connector. The slotted head means no special tooling; a #1 Phillips or flat-blade driver seats it. The 6.00 mm post length is measured from the underside of the head to the tip of the threaded portion, so it clears the PCB by that full dimension when the screw is tightened.

Compatibility and Use

This jackscrew is explicitly listed for use with CHAMP D-Sub connectors. That covers the full CHAMP family — standard-density, high-density, and shielded variants — as long as the connector body has the mating screwlock boss. It is not a generic D-Sub jackscrew; the M2 thread and post length are specific to the CHAMP interface. For a non-CHAMP D-Sub, check the thread size and standoff before substituting.
