Wire gauge and plating options across the series
The 794611-3: For a higher-current 20-24 AWG circuit with the same 30.0µin gold thickness, the 794606-3 covers that wire range in tape-and-reel packaging.

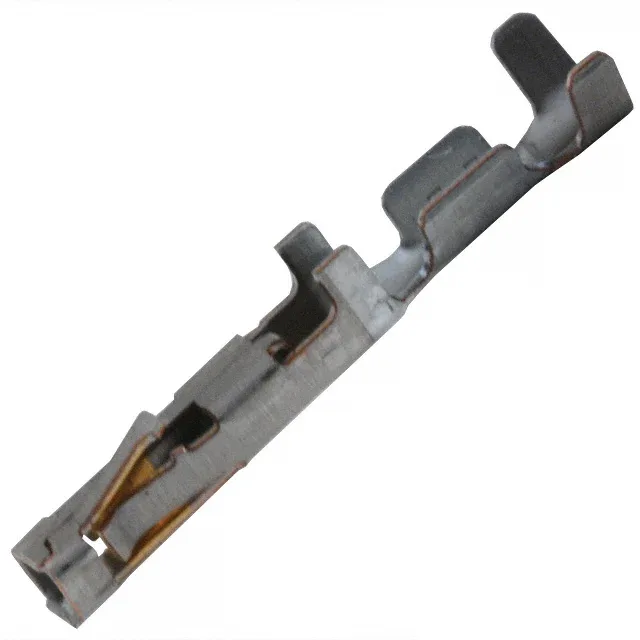

TE 794611-3 Micro MATE-N-LOK Crimp Socket, 26-30 AWG, Gold
MPN794611-3
Active
TE Connectivity AMP Connectors Micro MATE-N-LOK stamped socket, order code 794611-3, 26-30 AWG, gold contact finish 30.0µin (0.76µm), crimp termination, bulk package.
$0.19Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Stamped |
| Series | Micro MATE-N-LOK |
| Wire gauge | 26-30 AWG |
| Package | Bulk |
| Pin or socket | Socket |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Will 794611-3 drop into a panel that was specified around 794610-2 without rewiring?
No — 794611-3 accepts 26-30 AWG wire, while 794610-2 accepts 20-24 AWG. The housing and crimp tooling are shared across the Micro MATE-N-LOK series, but the wire gauge range must match the circuit's current requirement.
