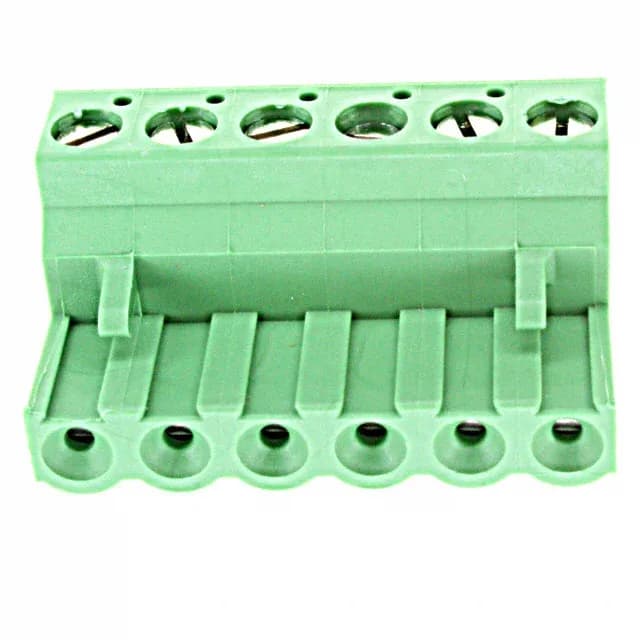

TE Connectivity AMP Connectors Buchanan series, 796634-6, 6-position plug, female sockets, 0.200" (5.08mm) pitch, 15 A, 300 V, free hanging, screw rising cage clamp, green, UL94 V-0, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.610\" (15.49mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
The 796634-6: This 6-position plug from the Buchanan series uses a 0.200" (5.08mm) pitch — the standard spacing for 300 V industrial terminal blocks. The 180° wire entry and free-hanging mount let you land the harness straight into a panel or enclosure without right-angle routing.
It has 6 positions on a 0.200" (5.08mm) pitch — a single-level plug with 6 positions per level.
The screw rising cage clamp accepts 12-30 AWG (0.05-3 mm²) solid or stranded wire. Strip length is 6-7.5mm and the M3 screw torque spec is 0.79 Nm (7.0 lb-in).
