8-position vertical header with 5.08mm pitch

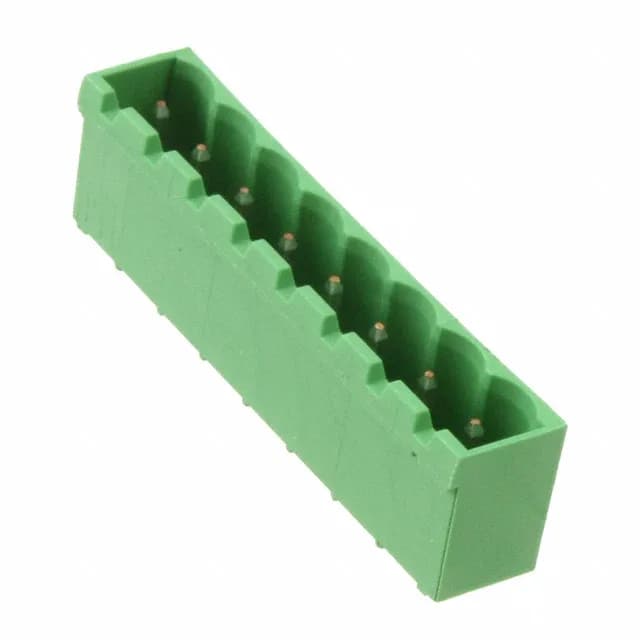

The 796636-8: This is a 8-position, single-level, vertical shrouded header from the Termi-Blok, Buchanan series. The 0.200" (5.08mm) pitch sets the board footprint and the per-contact current ceiling — at 15 A the temperature rise stays within the polyamide housing limit.
Through-hole mounting with solder termination — the contact tail length is 0.138" (3.50mm), which suits standard 1.6mm thick PCBs. The vertical orientation means the header stands upright on the board, with the wire entry from above. Insulation height of 0.472" (12.00mm) provides clearance for the mating plug body above the board surface. The material flammability rating is a standard safety requirement for terminal blocks used in power distribution and control circuits.
