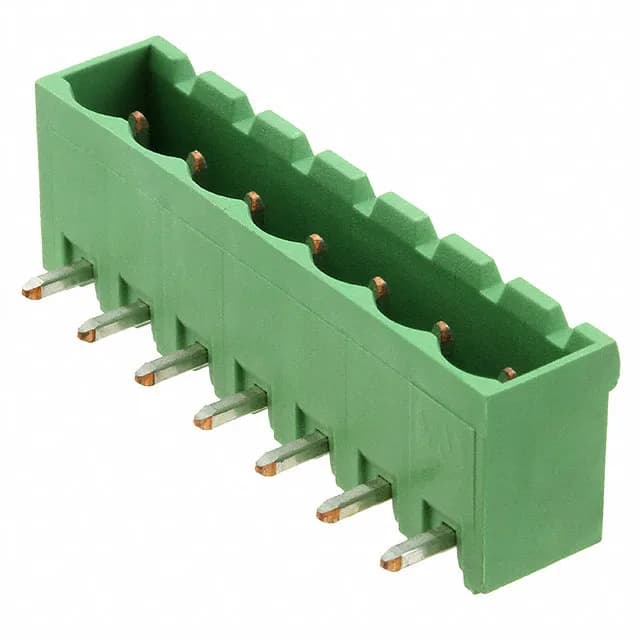

Sizing the board footprint for this 5.08mm header
The 0.200" (5.08mm) pitch sets the PCB hole pattern and the per-contact current ceiling — at 15 A the temperature rise stays within the polyamide housing limits under UL conditions.
Current, voltage, and material limits at a glance
Rated 15 A at 300 V per UL, with a tin-plated copper alloy contact interface. Tin is a cost-effective choice for applications with infrequent mating cycles — typical for terminal block headers that see one or two matings over the equipment life. Operating temperature range is -40°C to 110°C, covering most industrial cabinet and control panel environments. The 0.138" (3.50mm) contact tail length is standard for through-hole soldering to a typical 1.6mm PCB.
