TE Connectivity AMP Connectors 796639-2 — Header Plugs & Sockets

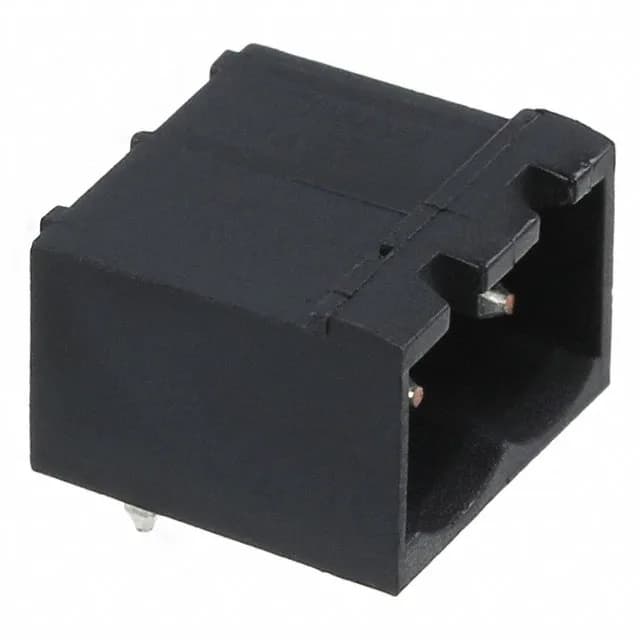

796639-2 TE Connectivity 2-Position 5.08mm Right-Angle

MPN796639-2
Active

TE Connectivity AMP Connectors Termi-Blok, Buchanan series, Header, Male Pins, Shrouded (4 Side), 2 positions, 0.200" (5.08mm) pitch, 15 A, 300 V, right-angle through-hole, tin contacts, UL94 V-0, RoHS compliant, bulk.

$0.6200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTermi-Blok, Buchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

796639-2 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesTermi-Blok, Buchanan
MountingThrough Hole
Voltage - UL300 V
Current - UL15 A
Operating temperature-40°C ~ 110°C
ColorBlack
Contact materialCopper Alloy
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.329\" (8.36mm)
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)

All specifications

796639-2 additional specifications
ParameterValue
PackageBulk
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.138\" (3.50mm)
Positions2
Positions per level2
Contact mating finishTin

Product details

Right-angle 2-position header for terminal block wiring

The 0.200" (5.08 mm) pitch sets the board footprint and the spacing between adjacent circuits — at 15 A the temperature rise stays within the polyamide housing's limits. The through-hole solder termination and 0.138" (3.50 mm) contact tail length provide a solid mechanical anchor for the header on the PCB, with the 4-side shroud protecting the pins during handling and mating.

Sourcing and compliance for the 796639-2

Available in bulk packaging.

Frequently asked questions

Is the 796639-2 RoHS compliant?

Yes, the 796639-2 is RoHS compliant per TE Connectivity's certification.

What is the pitch and position count of the 796639-2?

It is a 2-position header with a 0.200" (5.08 mm) pitch, single-level, right-angle orientation.
