Three-piece kit: header, housing, terminal

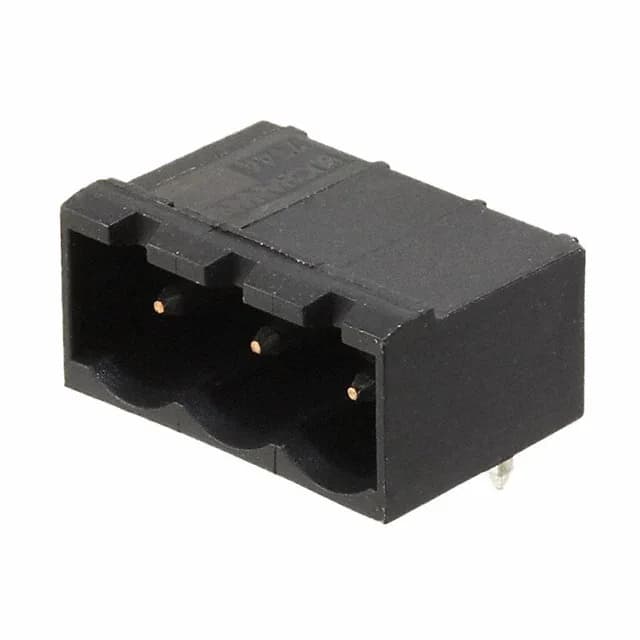

The 796639-3 is a 3-position, right-angle shrouded header from the Termi-Blok, Buchanan series. It mates with a Buchanan-style 5.08mm pitch plug or receptacle housing — the shrouded shroud guides the mating half and protects the pins during handling. The 0.200" (5.08mm) pitch and 15 A per circuit at 300 V suit it for industrial terminal block wiring where the board connects to a field-wired plug.
Board-fit and termination details
Through-hole solder termination with a contact tail length of 0.138" (3.50mm) — this tail length is standard for single-layer PCBs; verify the board thickness and solder wave parameters.
