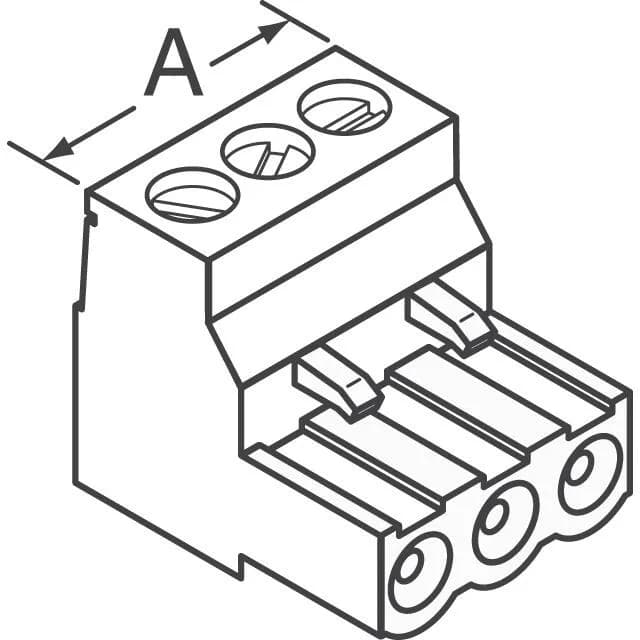

TE Connectivity AMP Connectors Buchanan series, 796640-3, Plug, Female Sockets, 3 positions, 0.197" (5.00mm) pitch, screw-clamp termination, 15 A, 300 V, UL94 V-0, green, free hanging
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.610\" (15.49mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side), Side Stacking |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
The 796640-3 is a 3-position plug from the TE Buchanan series, using a rising cage clamp termination that accepts 12-30 AWG wire with a strip length of 6-7.5 mm.
Retention latches on the non-wire side lock the plug into the mating header, preventing back-out under vibration. Side-stacking tabs allow multiple plugs to be ganged side-by-side on the same header, maintaining the 5.00 mm pitch between adjacent positions.
The screw-clamp termination accepts 12-30 AWG wire with a 0.79 Nm torque setting.
