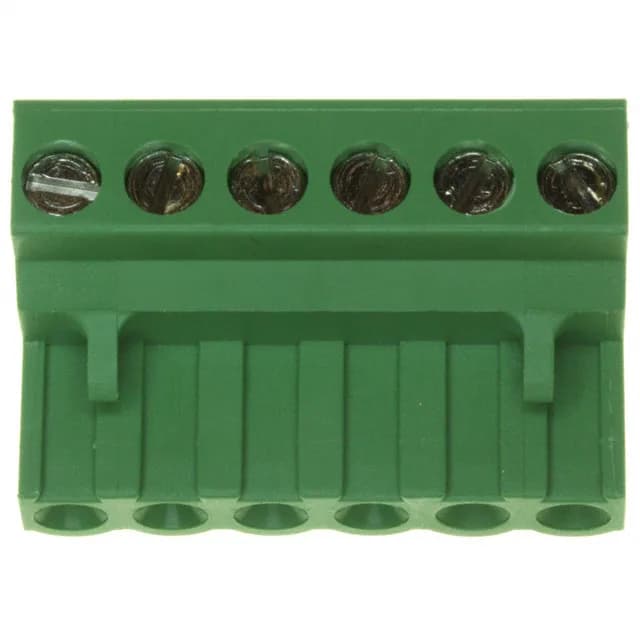

TE Connectivity AMP Connectors Buchanan 796640-6, Plug Female Sockets, 6 positions, 0.197" (5.00mm) pitch, 15 A / 300 V UL, screw rising cage clamp termination, free hanging, green housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.610\" (15.49mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side), Side Stacking |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
The 796640-6 is a 6-position plug from the TE Buchanan series, using a screw rising cage clamp to terminate 12-30 AWG wire with a strip length of 6-7.5mm. Rated 15 A at 300 V UL, with phosphor bronze contacts in a tin mating finish and a UL94 V-0 polyamide housing. The plug mates with a 5.00mm pitch header; the side stacking feature lets you gang multiple plugs on the same rail without losing position pitch.
0.197" (5.00mm) pitch.
