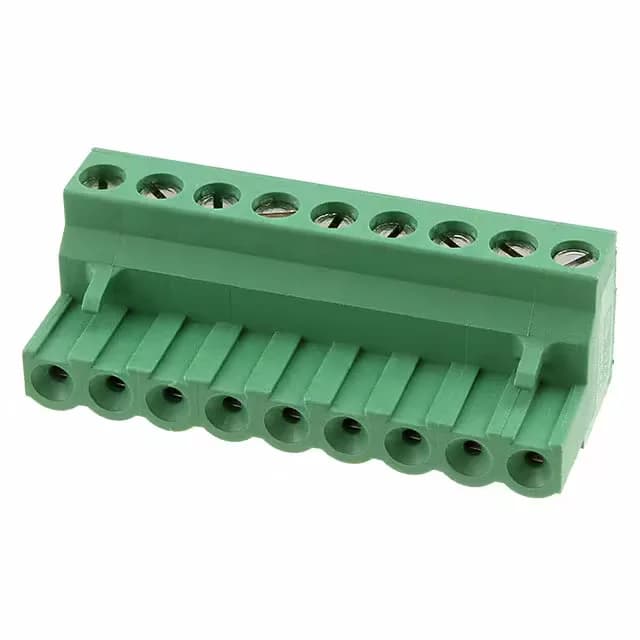

TE Connectivity AMP Connectors Buchanan series, Plug, Female Sockets, 9 positions, 0.197" (5.00mm) pitch, 15 A, 300 V, Free Hanging (In-Line), Screw - Rising Cage Clamp, Green housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.610\" (15.49mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side), Side Stacking |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 9 |
| Positions per level | 9 |
| Contact mating finish | Tin |
The 796640-9: The 12 AWG end is where you get the full 15 A without exceeding the temperature rise of the PA66 housing. Free hanging (in-line) mounting with 180° wire entry — the cable comes straight in, no right-angle bend, which keeps the wire bundle tidy inside a panel or junction box.
Submit an RFQ for the 796640-9. We source through independent distribution and confirm availability and pricing per your BOM quantity at quote time. No stock-holding claim; lead time depends on lot size and current supply.
The pitch is 0.197" (5.00 mm). This sets the board footprint for the mating header and the spacing between positions on the plug itself.
Yes, it is RoHS Compliant per the current directive.
It accepts 12-30 AWG solid or stranded wire, which corresponds to 0.05-3 mm². The 12 AWG end is where you get the full 15 A rating.
The M3 screw torque is 0.79 Nm (7.0 Lb-In). Overtorquing can strip the PA66 threads or damage the clamp.
