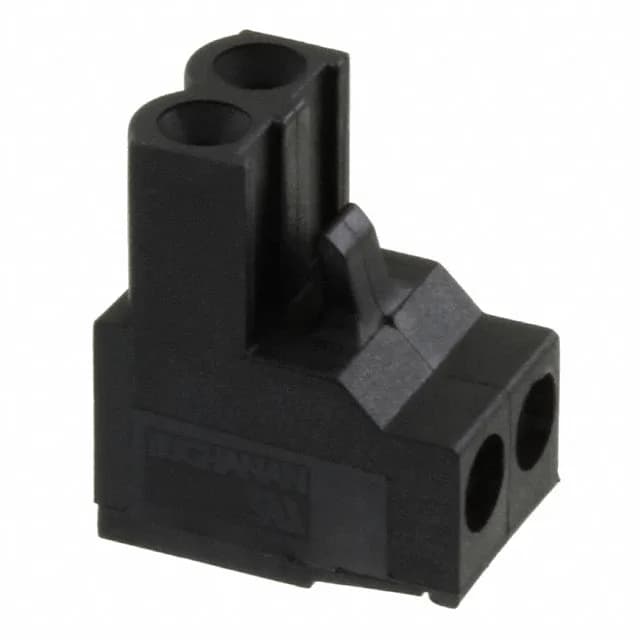

TE Connectivity AMP Connectors Termi-Blok, Buchanan series, 2-position plug, 5.00mm pitch, 15A/300V, screw rising cage clamp, retention latches, free hanging, black, bulk.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Termi-Blok, Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.610\" (15.49mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side), Side Stacking |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
The 796641-2 is a 2-position plug from the Termi-Blok series, rated 15 A at 300 V per UL. Retention latches on the non-wire side lock the plug into the mating header, preventing accidental disconnection under vibration. Side-stacking features let multiple plugs gang together for multi-position assemblies.
Rated 15 A continuous at 300 V per UL.
The M3 screw torque is 0.79 Nm (7.0 Lb-In). Torque it to spec, then scan the joint with a thermal camera to verify the connection stays within the 110°C operating limit.
Yes, the plug has retention latches on the non-wire side that lock into the mating header, plus side-stacking features for multi-position assemblies.
