TE Connectivity AMP Connectors 796642-2

796642-2 TE Connectivity Buchanan Header, 2-Pos, 5mm, 15A

MPN 796642-2
Active

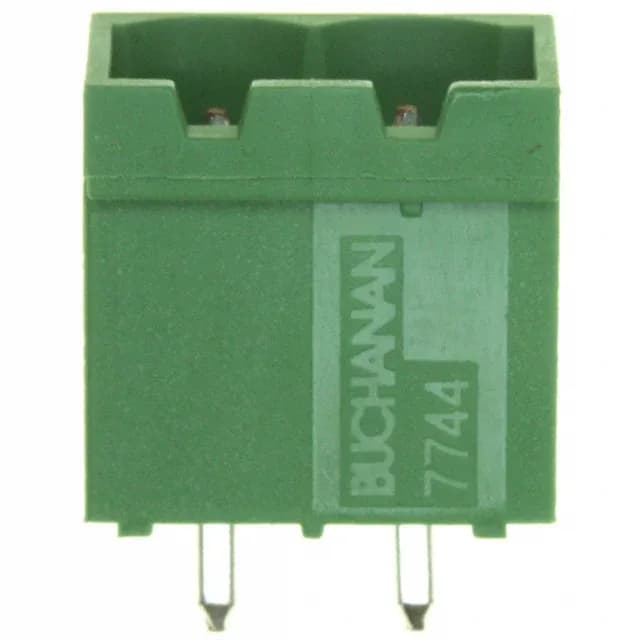

TE Connectivity AMP Connectors Buchanan series, 796642-2, Header, Male Pins, Shrouded (4 Side), 2 positions, 0.197" (5.00mm) pitch, through-hole, vertical orientation, 15 A, 300 V, tin contact finish, UL94 V-0.

$1.0300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

796642-2 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesBuchanan
MountingThrough Hole
Voltage - UL300 V
Current - UL15 A
Operating temperature-40°C~110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.472\" (12.00mm)
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)

All specifications

796642-2 additional specifications
ParameterValue
PackageBulk
Number of levels1
Termination styleSolder
Header orientationVertical
Contact tail length0.138\" (3.50mm)
Positions2
Positions per level2
Contact mating finishTin

Product details

Terminal Block Header for Power Distribution

The 796642-2 is a 2-position shrouded header from TE's Buchanan series, designed for wire-to-board terminal block applications. Its 5.00 mm pitch and 15 A / 300 V rating suit it for power distribution in industrial control panels, HVAC equipment, and lighting systems.

Rating and Material Choices

The green housing color is standard for Buchanan terminal block headers.

Peer alternatives in the same Buchanan series include 1-2213934-1, 1-2305909-1, and 1-2213935-1, all active bulk parts — confirm position count and pitch match before cross-referencing.
