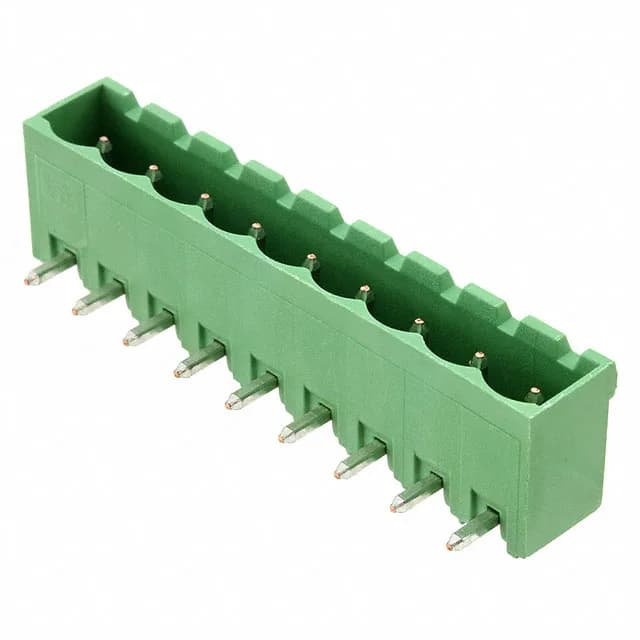

TE Connectivity AMP Connectors Termi-Blok, Buchanan series, 796644-9, Header, Male Pins, Shrouded (4 Side), 9 positions, 0.197" (5.00mm) pitch, 90° right-angle, through-hole solder, 15 A, 300 V, green PA66 housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Termi-Blok, Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.329\" (8.36mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 9 |
| Positions per level | 9 |
| Contact mating finish | Tin |
Rated 15 A per circuit at 300 V, this header suits power distribution in industrial control panels and PLC I/O racks. Contact mating finish is tin, rated for the typical mating cycle count of a terminal block application — not a high-cycle field-service connector, but reliable for the panel's service life.
The 796644-9 has 9 positions on a single level with a 0.197" (5.00 mm) pitch.
